Star Features


Star trailers come standard with a premium side door with upgraded PRO latch. Compare us to the others and you will see the difference.



Star commercial trailers are tough and look great with their Contemporary truck body styling.



HD thick floor trim with recessed screws not only looks great it will last while others will fail.



All Star double rear doors are steel framed and will out last lessor brands with wood framed doors.



Commercial quality cast aluminum door hold backs are designed for years of use and won’t rust.



One piece seamless aluminum roofs with premium self leveling sealants are standard. We leave leaky roofs to others.


Star premium commercial quality trailers are great looking trailers that will exceed your expectations. They are built with Bravo’s “BIG 10 plus 5” commercial quality construction features leading to the strongest, longest lasting trailers on the market today. Star trailers are available in 6’, 7’, and 8.5’ widths, tags and goosenecks to 48’. Create your dream trailer from our long list of option and specific use packages. Let us exceed your expectations.

View Big 10 PDF

Star Gooseneck/Fifth Wheel Standards

  • Dexter Spring Axles up to 6000# Axle
  • Dexter Torsion Axle 7000# & Greater
  • Trailer Rated Radial Tire
  • Silver Mod Wheels
  • Aluminum Fenders
  • Z-Tech Undercoated Frame
  • Tube Main Frame & Wall Posts 16″ O.C.
  • 24″ O.C. Tubular Roof Structure
  • 2-Speed Manual Landing Gear
  • 16″ On Center Cross Members
  • .030 Aluminum Exterior
  • Color Wrapped Rear Steel Header & Corner Posts
  • Aluminum Roof
  • TPO Cap
  • Anodized Front Corners
  • 3/4″ Engineered Floor
  • 3/8″ Drymax Walls
  • 48″ Side Door w/ Flushlock
  • Clear Lens LED Exterior Lighting
  • Exterior LED Rear Header Loading Light w/Switch
  • 2 Roof Vents
  • 2 LED Dome Lights
  • 1 LED Light Inside Riser Compartment
  • 3-way 12V Wall Switches
  • ATP Exterior Riser Wall w/ 40″ x 32″ Access Door
  • Double Rear Doors
  • Bravo “Big 10 Plus 5”

Star Tag Standards

  • Dexter Drop Spring Axle
  • 15″ Radial Tires
  • Silver Mod Wheels
  • Aluminum Fenders
  • Z-Tech Undercoated Frame
  • Tube Main Frame & Wall Posts 16″ O.C.
  • Zinc Tongue Jack with SandFoot
  • .030 Aluminum Exterior
  • 16″ On Center Cross Members
  • Color Wrapped Rear Steel Header & Corner Posts
  • Aluminum Roof
  • TPO Front Cap
  • Anodized Front Corners
  • 3/4″ Engineered Floor (8.5’W Models)
  • 3/4″ DryMax Floor (6′ & 7’W Models)
  • 3/8″ DryMax Walls
  • Side Door w/ Flushlock (6’W-32″, 7’W-32″ & 8.5’W-36″)
  • Exterior LED Rear Header Loading Light w/Switch
  • LED Strip Tail Lights
  • Clear Lens LED Exterior Lighting
  • LED Dome Light (1- 6’W, 2- 7’W & 8.5’W)
  • 12V Wall Switch
  • 24″ ATP Stoneguard
  • 1 Pair ABS Flow Thru Sidewall Vents
  • Bravo “Big 10 Plus 5”

Star Features


Star trailers come standard with a premium side door with upgraded PRO latch. Compare us to the others and you will see the difference.



Star commercial trailers are tough and look great with their Contemporary truck body styling.



HD thick floor trim with recessed screws not only looks great it will last while others will fail.



All Star double rear doors are steel framed and will out last lessor brands with wood framed doors.



Commercial quality cast aluminum door hold backs are designed for years of use and won’t rust.



One piece seamless aluminum roofs with premium self leveling sealants are standard. We leave leaky roofs to others.


Star premium commercial quality trailers are great looking trailers that will exceed your expectations. They are built with Bravo’s “BIG 10 plus 5” commercial quality construction features leading to the strongest, longest lasting trailers on the market today. Star trailers are available in 6’, 7’, and 8.5’ widths, tags and goosenecks to 48’. Create your dream trailer from our long list of option and specific use packages. Let us exceed your expectations.

View Big 10 PDF

Star  Gooseneck/Fifth Wheel Standards

  • Dexter Spring Axles up to 6000# Axle
  • Dexter Torsion Axle 7000# & Greater
  • Trailer Rated Radial Tire
  • Silver Mod Wheels
  • Aluminum Fenders
  • Z-Tech Undercoated Frame
  • Tube Main Frame & Wall Posts 16″ O.C.
  • 24″ O.C. Tubular Roof Structure
  • 2-Speed Manual Landing Gear
  • 16″ On Center Cross Members
  • .030 Aluminum Exterior
  • Color Wrapped Rear Steel Header & Corner Posts
  • Aluminum Roof
  • TPO Cap
  • Anodized Front Corners
  • 3/4″ Engineered Floor
  • 3/8″ Drymax Walls
  • 48″ Side Door w/ Flushlock
  • Clear Lens LED Exterior Lighting
  • Exterior LED Rear Header Loading Light w/Switch
  • 2 Roof Vents
  • 2 LED Dome Lights
  • 1 LED Light Inside Riser Compartment
  • 3-way 12V Wall Switches
  • ATP Exterior Riser Wall w/ 40″ x 32″ Access Door
  • Double Rear Doors
  • Bravo “Big 10 Plus 5”

Star Tag Standards

  • Dexter Drop Spring Axle
  • 15″ Radial Tires
  • Silver Mod Wheels
  • Aluminum Fenders
  • Z-Tech Undercoated Frame
  • Tube Main Frame & Wall Posts 16″ O.C.
  • Zinc Tongue Jack with SandFoot
  • .030 Aluminum Exterior
  • 16″ On Center Cross Members
  • Color Wrapped Rear Steel Header & Corner Posts
  • Aluminum Roof
  • TPO Front Cap
  • Anodized Front Corners
  • 3/4″ Engineered Floor (8.5’W Models)
  • 3/4″ DryMax Floor (6′ & 7’W Models)
  • 3/8″ DryMax Walls
  • Side Door w/ Flushlock (6’W-32″, 7’W-32″ & 8.5’W-36″)
  • Exterior LED Rear Header Loading Light w/Switch
  • LED Strip Tail Lights
  • Clear Lens LED Exterior Lighting
  • LED Dome Light (1- 6’W, 2- 7’W & 8.5’W)
  • 12V Wall Switch
  • 24″ ATP Stoneguard
  • 1 Pair ABS Flow Thru Sidewall Vents
  • Bravo “Big 10 Plus 5”

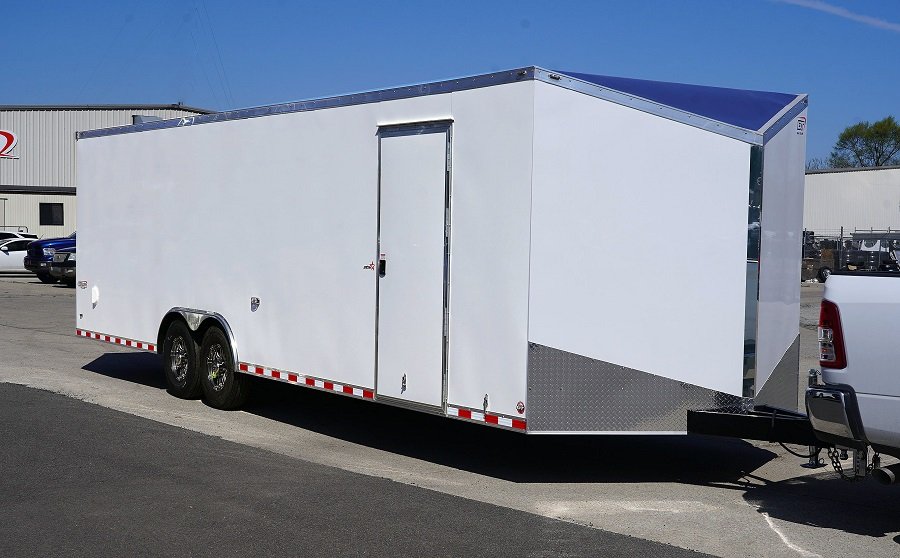

Star Trailers

You Deserve Something Better!

Whether it’s for work or play there is a Star trailer for you. Bravo trailers are built by a team who actually uses trailers themselves. Racers, hobbyists and tradesman-we at Bravo know what our customers demand from a quality cargo trailer. Great looking trailers that exceed your expectations are our specialty. They look better, tow better, last longer and are worth more at trade in time.

Picking the Perfect

Star Trailer

Is Easy!

Contacting your authorized Bravo dealer is a great first step. They are experts in trailering and will help you choose a trailer and package to get your job done. Many times they will have the right trailer for you in stock. If not they will work with you designing the perfect custom trailer and Bravo will build it right and deliver it on time. Our steadfast goal is to exceed your expectations!

Let Bravo Create the Perfect Trailer to Fit Your Needs
Our Options Work Better!
Star Options

Tag Models Available:
6′ X 10′ to 12’L
7′ X 12′ to 24’L
8.5′ X 14′ to 34’L

Gooseneck/Fifth Wheel Models Available:
8.5′ x 36′ to 48’L

Awning
Axles, Running Gear & Wheels
  • Axles Dexter Torsion –
  • Aluminum Wheels –
  • Heavy Duty Steel Wheels –
  • Brakes – Heavy Duty Surge with Adjustable Coupler –
Exterior Metal Options
  • Exterior Colors –
  • Split Color / Two Tone –
  • ATP Rear Crossmember –
  • Stainless Steel Gooseneck –
  • ATP Finished Under Riser with LED Lights –
Framework Options
  • Extra Height – 6” – 48” Available. Based on Model Width & GVWR
  • Extended A-Frame –
  • Removable A-Frame –
  • ATP Covered A-Frame –
  • Reverse Beavertail –
  • Heavy Duty Rear Bogey Wheels –
Front End Styles
  • Slant Wedge –
  • V-Nose –
Jacks
  • Drop Down –
  • Nose Jacks –
12V Lighting & Options
  • Rear Loading Light –
  • Swing-out 12V Quartz Loading Light –
  • 12V Kill Switch –
110V Electrical Upgrades & Packages –
Doors
Concession Doors & Windows –
  • Exterior Removable Shelf –
Exterior Side Doors & Upgrades
  • 60” Double Side Door –
  • RV Side Door w/ Window & Screen –
  • Side Door Steps –
  • Bar Lock & Vise Lock –
  • 54” Over Wheel Well Door –
  • Swing Up Door w/ Removable Wheel Box Aluminum Models –
Ramp or Rear Door Options
  • Double Rear Door Cam Lock –
  • Rear Ramp Door (Light Duty, Medium Duty w/Flap, Heavy Duty w/Flap) –
  • ICON Rear Lights on Ramp Door –
  • Transition Flap for Ramp Door –
  • Turnkey 10’ Folding Ramps –
  • Cold Curtain –
  • Sliding Rear Glass Doors –
  • Rear Roll-up Style Door –
Ramp Over Wheel Wells & Ramp Ups –
Utility/Misc. Doors
  • Generator / Baggage Doors –
  • Cable Splicing Door –
  • Gooseneck Access Doors –
  • Pocket Door in Partition Wall –
Finished Interior –
  • Flooring Options –
  • Insulation –
Cabinets –
  • Interior Shelving –
Generators –
  • Fuel Tank –
Roof Options
  • Roof Ladder Racks –
  • Roof Observation Deck w/ Ladder –
  • Roof Escape Hatch –
  • Roof Translucent –
Spare Tire Mounts –
  • Tire Racks –
Storage / Tool Box –
Tie Downs
  • D-Ring & E-Track Tie Downs –
  • Wheel Chocks –
Vents
  • Roof Vents –
  • Sidewall Vents Aluminum –
Winch Options –
Windows –
Wing – Star Rear –
Custom Options
  • Air Line with Drain –
  • LP Tanks –
  • Sinks, Plumbing & Bathrooms –
  • Outdoor Shower –
  • Display Cases with Slat Board Wall –
  • Rear Camera –
Star Packages
  • Heavy Duty Ramp Door w/Flap
  • Rubber Hinge Cover
  • Beavertail
  • 4- 5000# Recessed Floor D-Rings

Available on 7′ & 8.5’W Tandem Models Only

  • 54” HD Triple Tube Tongue w/Additional Tubing
  • 7Ga Reinforced Front Crossmember
  • ATP Rear Covered Crossmember
  • Square 5000# Drop Leg Tongue Jack – Set Back
  • 3000# Rear Corner Post Jacks
  • ¾” Wolmanized Plywood Floor
  • Bravo Built 36” Heavy Duty Aluminum Framed Side w/Flushlock, Barlock & ATP Backer
  • Interior Wheel box Protection
  • Galvaneal Rear Interior Corner Protection

Available on 7′ & 8.5’W Tandem Axle Models Only

  • 1- 72”W x 22”T Baggage Door
  • 16”D x 40”T Plywood Cabinet w/Hinged Top
  • Pegboard on Inside of All Compartments
  • 22”W x 35”T Baggage Doors w/Adjustable Shelf (2 on curbside, 3 on roadside)

Available on 8.5’W Models Only

  • Auto Hauler Package
  • Torsion Axle Upgrade
  • White Vinyl Walls
  • White Vinyl Ceiling

Available Only on 7′ x 12′ TA2 Models

  • Screwless Exterior 030 Metal
  • 12” Extra Height
  • 54” Triple Tube Tongue
  • Set Back Tongue Jack
  • 1000# Corner Post Rear Drop Down Jacks
  • 16” O.C. Roof Bows
  • Additional 32” Side Door w/Pro Latch
  • (2) 15”w x 30”h Windows w/Vertical Slider in Side Doors
  • Rear Bumper Step Covered with ATP
  • (1) 30”w x 15”h Window w/Horizontal Slider
  • (2) Cable Splicing Doors
  • Ceiling & Wall Insulation
  • White Vinyl Ceiling and Walls
  • Black Coin Floor
  • Exterior LED Beacon Light
  • (2) Exterior 11” LED Loading Lights
  • 110 Electrical
  • Air Conditioning & Heat
  • 4’ Overhead Cabinet
  • 24” Deep Countertop
  • Fire Extinguisher & Carbon Monoxide Detector

Available on 7′ & 8.5’W Tandem Axle Models Only Up to 24’L

  • Anodized Front Corners
  • 24” ATP Stoneguard Wrapped Around Front Corners
  • Rock Guard Coating on Tongue & Rear Member
  • 54” HD Triple Tube Tongue w/Additional Tubing
  • 7Ga Reinforced Front Crossmember
  • Heavy Duty Ramp Door w/Flap, 4 Hinges
  • ATP Lock Protection on Doors
  • Square 5000# Drop Leg Tongue Jack – Set Back
  • 3000# Rear Corner Post Jacks
  • ¾” Wolmanized Plywood Floor and Ramp
  • Bravo Built 36” Heavy Duty Aluminum Framed Side w/Flushlock, Barlock & ATP Backer

Available on 7′ & 8.5’W Tandem Axle (12′ – 20’L)

  • Anodized Front Corners
  • 24” ATP Stoneguard Wrapped Around Front Corners
  • Rock Guard Coating on Tongue & Rear Member
  • 54” HD Triple Tube Tongue w/Additional Tubing
  • 7Ga Reinforced Front Crossmember
  • Heavy Duty Ramp Door w/Flap, 4 Hinges
  • ATP Lock Protection on Doors
  • Square 5000# Drop Leg Tongue Jack – Set Back
  • 3000# Rear Corner Post Jacks
  • ¾” Wolmanized Plywood Floor and Ramp
  • ¾” x 12” Drymax Kickplate
  • Galvaneal Rear Interior Corner Protection
  • Interior Wheel Box Protection
  • Bravo Built 36” Heavy Duty Aluminum Framed Side w/Flushlock, Barlock & ATP Backer

Available on 6′ & 7’W Single Axle Models

  • Medium Duty Ramp Door w/Flap
  • 1000# Drop Down Jacks
  • 4- 5000# Recessed Floor D-Rings
  • Mounting Plate for Wheel Chock (Chock sold separately)

Available on 7’W Tandem Axle Models

  • Medium Duty Ramp Door w/Flap
  • 1000# Drop Down Jacks
  • 7- 5000# Recessed Floor D-Rings
  • 2- Mounting Plates for Wheel Chock (Chock sold separately)
  • 24” Beavertail

Available on 7′ & 8.5’W Tandem Axle (14′ to 20’L)

  • 60” V-Nose (Adds 5’ to Trailer Length)
  • 64” Medium Duty Ramp in ‘V’
  • Rear Ramp Door w/Flap
  • Ski Guides at Front Ramp & Inside ‘V’
  • ¾” Wolmanized Floor & Ramp Doors
  • ¾” Drymax Kickplate
  • 2-Way Aluminum Sidewall Vents

Available on 7’W Tandem Axle Models (14′, 16′ & 18’L)

  • Medium Duty Ramp Door w/Flap
  • Stoneguard Top Trim
  • Screwless Exterior Sidewalls
  • 12” Ex Height
  • 16” On Center Floor Members
  • 30” V-Nose
  • 4- 5000# Recessed Floor D-Rings
  • Chrome Bezel for LED Tail Lights
  • Stainless Steel Center Caps

Must Include V-Nose & Ramp Door

Black Out Thermocoat items to include:

  • Fenders Inside and Out
  • Top Rail & Bottom Trim
  • Side Door Trim & Stoneguard
  • Cast Aluminum Door Holdbacks
  • Rear Corners
  • Bezels on Fender & Tail Lights
  • Stainless Center Cap if Steel Wheel
  • Black Center Caps if Aluminum Wheel Optioned

Available only on 7′ & 8.5’W Star Models

  • Mill Finish Front Insert
  • Ball Burnished Front & Rear Corner Castings With Superstar Top Trim
  • Anodized Front Corners w/J-Rail (Screwed Down)
  • Wrapped 24” ATP Stoneguard Around Front Corners
  • 5-1/2” Super Duty Bottom Trim
  • Mill Finish Aluminum on Interior of Side Door

Not Available with V-Front

  • Aluminum Wheels
  • Polished Fenders
  • Stainless Steel Center caps
  • Stainless Steel Front Insert
  • Polished Front & Rear Corner Casting
  • Anodized Rear Corner Overlay
  • Chrome Bezels for LED Tail Lights
Hundreds more and a custom shop to install them!

Star Trailer Specifications

Visit the Shopping Tools Tab for Printable Specs
Model code: ST8528TA3

ST = Star Model, 85 = 8.5′ Width, 28 = 28′ Length, TA = Tandem Axles, 3 = Axle Rating

Specifications subject to change. Curb weights based on standard models with no options.

Details ST610SA ST612SA ST712SA ST714TA2 ST716TA2 ST718TA2 ST714TA3 ST716TA3 ST718TA3 ST8516TA2 ST8520TA2 ST8524TA2 ST8516TA3 ST8520TA3 ST8524TA3 ST8528TA3 STG8536TTA3 STG8540TTA3 STG8544TTA3 STG8536TTA4 STG8540TTA4 STG8544TTA4 STG8548TTA4
Download Floorplans Here Flat | V-Nose Flat | V-Nose Flat | V-Nose Flat | V-Nose Flat | V-Nose Flat | V-Nose Flat Flat Flat
Axles 2990# 2990# 3500# 3500# 3500# 3500# 5200# 5200# 5200# 3500# 3500# 3500# 5200# 5200# 5200# 5200# 5000# 5000# 5000# 6000# 6000# 6000# 6000#
Tires 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 16″ Radial 16″ Radial 16″ Radial 16″ Radial
Brakes Option Option Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric
Tube Frame 3″ Tube 3″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube
Hitch Ball Size 2″ 2″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″
Curb Weight 1145# 1300# 1825# 2110# 2300# 2530# 2475# 2665# 2855# 2416# 2900# 3384# 2678# 3188# 3697# 4207# 6655# 7079# 7522# 6948# 7372# 7815# 8231#
Hitch Weight 155# 160# 195# 315# 345# 379# 372# 400# 429# 326# 391# 456# 361# 430# 499# 568# 1664# 1770# 1881# 1737#

1843#

1954#

2058#

GVWR 2990# 2990# 3500# 7000# 7000# 7000# 9990# 9990# 9990# 7000# 7000# 7000# 9990# 9990# 9990# 9990# 15600# 15600# 15000# 18000# 18000# 18000# 18000#
Payload Capacity 1845# 1690# 1675# 4890# 4700# 4470# 7515# 7325# 7135# 4584# 4100# 3616# 7312# 6802# 6293# 5783# 8945# 8521#

8078#

11052#

10628#

10185#

9769#

Overall Length 14′-2″ 16′-2″ 16′-1″ 18′-1″ 20′-1″ 22′-1″ 18′-1″ 20′-1″ 22′-1″ 20′-2″ 24′-2″ 28′-2″ 20′-2″ 24′-2″ 28′-2″ 32′-2″ 36′-6″ 40′-6″ 44′-6″ 36′-6″ 40′-6″ 44′-6″ 48′-6″
Overall Width 7′-8″ 7′-8″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″
Overall Height 7′-8″ 7′-8″ 7′-10″ 7′-10″ 7′-10″ 7′-10″ 7′-10″ 7′-10″ 7′-10″ 8′-5″ 8′-5″ 8′-5″ 8′-5″ 8′-5″ 8′-5″ 8′-5″ 9′ 9′ 9′ 9’1″ 9’1″ 9’1″ 9’1″
Exterior Box Width 6′ 6′ 7′ 7′ 7′ 7′ 7′ 7′ 7′ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″
Interior Length 10′-2″ 12′-2″ 11′-8″ 13′-8″ 15′-8″ 17′-8″ 13′-8″ 15′-8″ 17′-8″ 15′-8″ 19′-8″ 23′-8″ 15′-8″ 19′-8″ 23′-8″ 27′-8″ 28″ 32″

36’

28′ 32″ 36’ 40′
Interior Lower Deck Length N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A 28′ 32′ 36′ 28′ 32′ 36′ 40′
Interior Upper Deck Length N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″
Interior Width 5′-8″ 5′-8″ 6′-8″ 6′-8″ 6′-8″ 6′-8″ 6′-8″ 6′-8″ 6′-8″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″
Width Between W/W N/A N/A N/A N/A N/A N/A N/A N/A N/A 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″
Interior Height 6′-1″ 6′-1″ 6′-1″ 6′-1″ 6′-1″ 6′-1″ 6′-1″ 6′-1″ 6′-1″ 6′-7″ 6′-7″ 6′-7″ 6′-7″ 6′-7″ 6′-7″ 6′-7″ 7′ 7′ 7′ 7′ 7′ 7′ 7′
Interior Riser Wall Height N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A 53″ N/A 53″ 53″ 53″ 53″ 53″
Interior Attic Height N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A 31″ N/A 31″ 31″ 31″ 31″ 31″
Platform Height 18″ 18″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 21″ 21″ 21″ 23″
Rear Doors Double Double Double Double Double Double Double Double Double Double Double Double Double Double Double Double Double Double Double Double Double Double Double
Rear Door Width 5′-3″ 5′-3″ 6′-3″ 6′-3″ 6′-3″ 6′-3″ 6′-3″ 6′-3″ 6′-3″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″
Rear Door Height 5′-6″ 5′-6″ 5′-6″ 5′-6″ 5′-6″ 5′-6″ 5′-6″ 5′-6″ 5′-6″ 6′ 6′ 6′ 6′ 6′ 6′ 6′ 6′-6″ 6′-8″ 6′-8″ 6′-8″ 6′-8″ 6′-8″ 6′-8″
Side Door Width 32″ 32″ 32″ 32″ 32″ 32″ 32″ 32″ 32″ 36″ 36″ 36″ 36″ 36″ 36″ 36″ 48″ 48″ 48″ 48″ 48″ 48″ 48″
Side Door Height 5′-2″ 5′-2″ 5′-2″ 5′-2″ 5′-2″ 5′-2″ 5′-2″ 5′-2″ 5′-2″ 5′-10″ 5′-10″ 5′-10″ 5′-10″ 5′-10″ 5′-10″ 5′-10″ 6′-6″ 78″ 78″ 78″ 78″ 78″ 78″
Cross Members O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C.
Wall Posts O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C.
Roof Members O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C.

Show Your Colors!

Split Colors with Swoosh
Midnight Colors
Add a MIDNIGHT blackout package!
See Dealer for Additional Colors*

*additional charge color

Split Colors with Swoosh
Midnight Colors
Add a MIDNIGHT blackout package!
See Dealer for Additional Colors*

*additional charge color

Find Your Local

Dealer

Find Now

Find Your Local

Dealer

Find Now
