Reasons Why Bravo

Is A Better Workshop/Fiber Optic Trailer

Attitude


Our goal every day is to build great trailers! You can’t beat Bravo’s “Do it right” attitude. We profit from happy customers, not cutting corners.


Better Frames


Better frames equal a better longer lasting trailer. Bravo uses tube where the others use angle, I-beam or hat posts.


Better Materials


Better parts equal a better trailer. Look for premium components such as Dexter axles and 3M VHB.


Better Fit and Finish


We are proud of the trailers we build! Take a look at the others and judge for yourself.


Built Right and On Time


We love custom trailers. Bravo will build your dream trailer right and deliver it on time.


They Tow Better


Our years of experience and thousands of miles towing trailers have allowed us to tweak our designs for better and safer towing.


Options Galore


Bravo options work better because we use them. Our options are engineered in, not added on.


Contemporary Design


All Bravo cargo trailers feature our truck body flat top styling. Ever see a round “wagon style” truck body or semi? Nope!


Engineered Design


Let Bravo’s experienced engineering and design team exceed your expectations. Odds are we’ve already built one


Customer Service


No other trailer manufacture will address your needs as quickly or fairly as Bravo. Thrilled customers are our greatest asset.


Reasons Why Bravo

Is A Better Workshop/
Fiber Optic
 Trailer

Attitude


Our goal every day is to build great trailers! You can’t beat Bravo’s “Do it right” attitude. We profit from happy customers, not cutting corners.


Better Frames


Better frames equal a better longer lasting trailer. Bravo uses tube where the others use angle, I-beam or hat posts.


Better Materials


Better parts equal a better trailer. Look for premium components such as Dexter axles and 3M VHB.


Better Fit and Finish


We are proud of the trailers we build! Take a look at the others and judge for yourself.


Built Right and On Time


We love custom trailers. Bravo will build your dream trailer right and deliver it on time.


They Tow Better


Our years of experience and thousands of miles towing trailers have allowed us to tweak our designs for better and safer towing.


Options Galore


Bravo options work better because we use them. Our options are engineered in, not added on.


Contemporary Design


All Bravo cargo trailers feature our truck body flat top styling. Ever see a round “wagon style” truck body or semi? Nope!


Engineered Design


Let Bravo’s experienced engineering and design team exceed your expectations. Odds are we’ve already built one


Customer Service


No other trailer manufacture will address your needs as quickly or fairly as Bravo. Thrilled customers are our greatest asset.


Steel Premium Commercial

Aluminum Premium Commercial

Aluminum & Steel Premium Commercial Super Duty

Steel Premium Commercial

Aluminum Premium Commercial

Aluminum & Steel Premium Commercial Super Duty

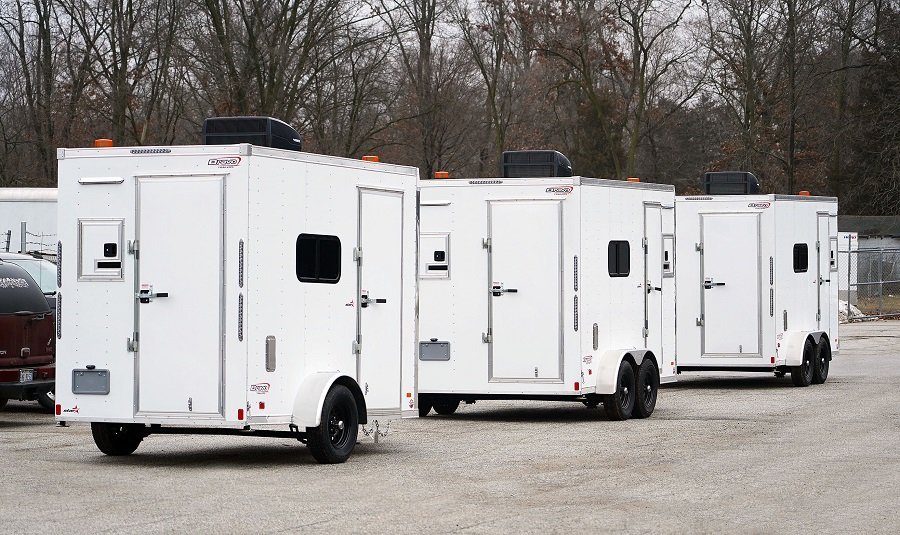

Workshop/Fiber Optic Trailers

You Deserve the Best!

Bravo is the perfect partner for your Mobile Workshop or Fiber Optic trailer project.  Each use has different needs and the Bravo team will work with you to build the perfect trailer in either aluminum or steel frames.

With Bravo’s years of experience you can trust we’ll get it right.  Pick from our 1000’s of options and we will create your dream trailer. Bravo commercial trailers work better, tow better, look better, and last longer.  We make dreams come true!

Picking the Perfect

Workshop/Fiber Optic Trailer

Is Easy!

Contacting your authorized Bravo dealer is a great first step. Working together we will design the perfect custom trailer and make your project a success. Bravo has the resources to build it right and deliver it on time. You will not be disappointed. Our steadfast goal is to exceed your expectations!

Let Bravo Create the Perfect Trailer to Fit Your Needs
Our Options Work Better!
Star Workshop Options

Tag Models Available:
6′ X 10′ to 12’L
7′ X 12′ to 24’L
8.5′ X 14′ to 34’L

Gooseneck/Fifth Wheel Models Available:
8.5′ X 36′ to 48’L

Awning
Axles, Running Gear & Wheels
  • Axles Dexter Torsion –
  • Aluminum Wheels –
  • Heavy Duty Steel Wheels –
  • Brakes – Heavy Duty Surge with Adjustable Coupler –
Exterior Metal Options
  • Exterior Colors –
  • Split Color / Two Tone –
  • ATP Rear Crossmember –
  • Stainless Steel Gooseneck –
  • ATP Finished Under Riser with LED Lights –
Framework Options
  • Extra Height – 6” – 48” Available. Based on Model Width & GVWR
  • Extended A-Frame –
  • Removable A-Frame –
  • ATP Covered A-Frame –
  • Reverse Beavertail –
  • Heavy Duty Rear Bogey Wheels –
Front End Styles
  • Slant Wege –

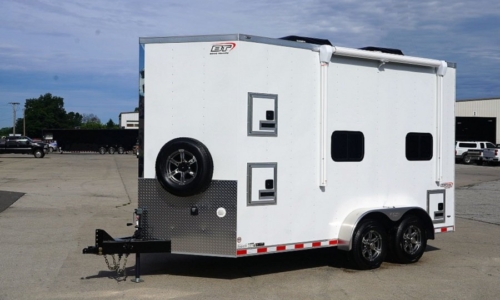

  • V-Nose –
Jacks
  • Drop Down –
  • Jacks Nose Jacks –
12V Lighting & Options
  • Rear Loading Light –
  • Swing-out 12V Quartz Loading Light –
  • 12V Kill Switch –
110V Electrical Upgrades & Packages –
Doors
Concession Doors & Windows –
  • Exterior Removable Shelf –
Exterior Side Doors & Upgrades
  • 60” Double Side Door –
  • RV Side Door w/ Window & Screen –
  • Side Door Steps –
  • Bar Lock & Vise Lock –
  • 54” Over Wheel Well Door –
  • Swing Up Door w/ Removable Wheel Box Aluminum Models –
Ramp or Rear Door Options
  • Double Rear Door Cam Lock –

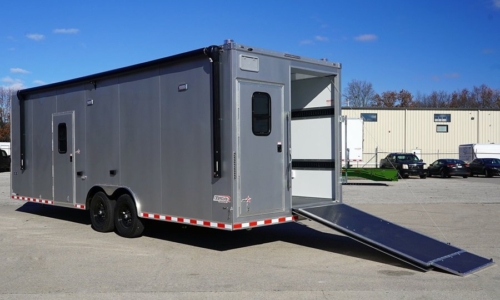

  • Rear Ramp Door (Light Duty, Medium Duty w/Flap, Heavy Duty w/Flap) –
  • ICON Rear Lights on Ramp Door –
  • Transition Flap for Ramp Door –
  • Turnkey 10’ Folding Ramps –
  • Cold Curtain –
  • Sliding Rear Glass Doors –

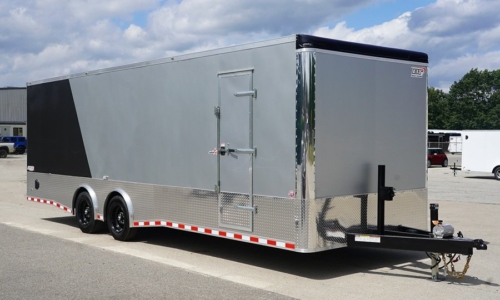

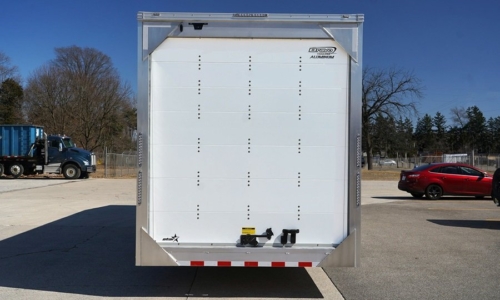

  • Rear Roll-up Style Door –
Ramp Over Wheel Wells & Ramp Ups –
Utility/Misc. Doors
  • Generator / Baggage Doors –
  • Cable Splicing Door –
  • Gooseneck Access Doors –
  • Pocket Door in Partition Wall –
Finished Interior –
  • Flooring Options –
  • Insulation –
Cabinets –
  • Interior Shelving –
Generators –
  • Fuel Tank –
Roof Options

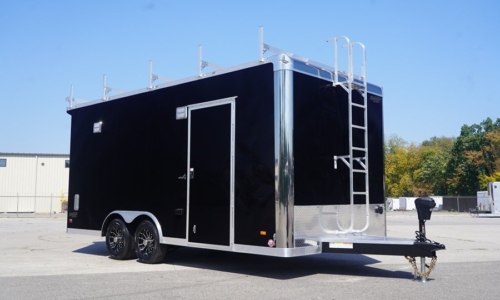

  • Roof Ladder Racks –
  • Roof Observation Deck w/ Ladder –
  • Roof Escape Hatch –
  • Roof Translucent –

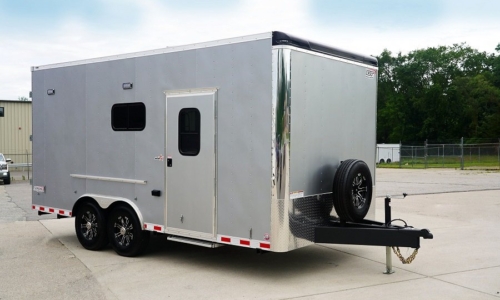

Spare Tire Mounts –
  • Tire Racks –
Storage / Tool Box –
Tie Downs
  • D-Ring & E-Track Tie Downs –
  • Wheel Chocks –
Vents
  • Roof Vents –
  • Sidewall Vents Aluminum –
Winch Options –
Windows –
Wing – Star Rear –
Custom Options
  • Air Line with Drain –
  • LP Tanks –
  • Sinks, Plumbing & Bathrooms –
  • Outdoor Shower –
  • Display Cases with Slat Board Wall –
  • Rear Camera –
Star Workshop Packages

Up to 4500# – Available on 7′ & 8.5’W Tandem Axle up to 20’L

  • 54” HD Triple Tube Tongue w/Additional Tubing
  • 7Ga Reinforced Front Crossmember
  • Square 5000# Drop Leg Tongue Jack – Set Back
  • 12” On Center Floor Members
  • 4- 6000# Recessed Swivel D-Rings
  • Bravo Built 36” Heavy Duty Aluminum Framed Side w/Flushlock & Barlock
  • Double ¾” Wolmanized Plywood Floor- Single Layer on Reinforced Super Duty Ramp Door
  • Super Duty Ramp Door w/Steel Treadplate Flap
  • 48”W, 11Ga Steel Treadplate Runner on Ramp Door
  • 4- 12” x 12” 11Ga Steel Treadplate Plates (Shipped Loose)
  • All Steel Treadplate Items Coated w/Spray on Floor Covering
  • Chrome Bezel for LED Tail Lights
  • Stainless Steel Center Caps

Not Available with V-Front

  • Aluminum Wheels
  • Polished Fenders
  • Stainless Steel Center caps
  • Stainless Steel Front Insert
  • Polished Front & Rear Corner Casting
  • Anodized Rear Corner Overlay
  • Chrome Bezels for LED Tail Lights

Available on 7′ x 12′ TA2 Models

  • Screwless Exterior 030 Metal
  • 12” Extra Height
  • 54” Triple Tube Tongue
  • Set Back Tongue Jack
  • 1000# Corner Post Rear Drop Down Jacks
  • 16” O.C. Roof Bows
  • Additional 32” Side Door w/Pro Latch
  • (2) 15”w x 30”h Windows w/Vertical Slider in Side Doors
  • Rear Bumper Step Covered with ATP
  • (1) 30”w x 15”h Window w/Horizontal Slider
  • (2) Cable Splicing Doors
  • Ceiling & Wall Insulation
  • White Vinyl Ceiling and Walls
  • Black Coin Floor
  • Exterior LED Beacon Light
  • (2) Exterior 11” LED Loading Lights
  • 110 Electrical
  • Air Conditioning & Heat
  • 4’ Overhead Cabinet
  • 24” Deep Countertop
  • Fire Extinguisher & Carbon Monoxide Detector
Hundreds more and a custom shop to install them!

Star Trailer Specifications

Visit the Shopping Tools Tab for Printable Specs
Model code: ST8528TA3

ST = Star Model, 85 = 8.5′ Width, 28 = 28′ Length, TA = Tandem Axles, 3 = Axle Rating

Specifications subject to change. Curb weights based on standard models with no options.

Details ST610SA ST612SA ST712SA ST714TA2 ST716TA2 ST718TA2 ST714TA3 ST716TA3 ST718TA3 ST8516TA2 ST8520TA2 ST8524TA2 ST8516TA3 ST8520TA3 ST8524TA3 ST8528TA3 STG8536TTA3 STG8540TTA3 STG8544TTA3 STG8536TTA4 STG8540TTA4 STG8544TTA4 STG8548TTA4
Download Floorplans Here Flat | V-Nose Flat | V-Nose Flat | V-Nose Flat | V-Nose Flat | V-Nose Flat | V-Nose Flat Flat Flat
Axles 2990# 2990# 3500# 3500# 3500# 3500# 5200# 5200# 5200# 3500# 3500# 3500# 5200# 5200# 5200# 5200# 5000# 5000# 5000# 6000# 6000# 6000# 6000#
Tires 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 16″ Radial 16″ Radial 16″ Radial 16″ Radial
Brakes Option Option Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric
Tube Frame 3″ Tube 3″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube
Hitch Ball Size 2″ 2″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″
Curb Weight 1145# 1300# 1825# 2110# 2300# 2530# 2475# 2665# 2855# 2416# 2900# 3384# 2678# 3188# 3697# 4207# 6655# 7079# 7522# 6948# 7372# 7815# 8231#
Hitch Weight 155# 160# 195# 315# 345# 379# 372# 400# 429# 326# 391# 456# 361# 430# 499# 568# 1664# 1770# 1881# 1737#

1843#

1954#

2058#

GVWR 2990# 2990# 3500# 7000# 7000# 7000# 9990# 9990# 9990# 7000# 7000# 7000# 9990# 9990# 9990# 9990# 15600# 15600# 15000# 18000# 18000# 18000# 18000#
Payload Capacity 1845# 1690# 1675# 4890# 4700# 4470# 7515# 7325# 7135# 4584# 4100# 3616# 7312# 6802# 6293# 5783# 8945# 8521#

8078#

11052#

10628#

10185#

9769#

Overall Length 14′-2″ 16′-2″ 16′-1″ 18′-1″ 20′-1″ 22′-1″ 18′-1″ 20′-1″ 22′-1″ 20′-2″ 24′-2″ 28′-2″ 20′-2″ 24′-2″ 28′-2″ 32′-2″ 36′-6″ 40′-6″ 44′-6″ 36′-6″ 40′-6″ 44′-6″ 48′-6″
Overall Width 7′-8″ 7′-8″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″
Overall Height 7′-8″ 7′-8″ 7′-10″ 7′-10″ 7′-10″ 7′-10″ 7′-10″ 7′-10″ 7′-10″ 8′-5″ 8′-5″ 8′-5″ 8′-5″ 8′-5″ 8′-5″ 8′-5″ 9′ 9′ 9′ 9’1″ 9’1″ 9’1″ 9’1″
Exterior Box Width 6′ 6′ 7′ 7′ 7′ 7′ 7′ 7′ 7′ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″
Interior Length 10′-2″ 12′-2″ 11′-8″ 13′-8″ 15′-8″ 17′-8″ 13′-8″ 15′-8″ 17′-8″ 15′-8″ 19′-8″ 23′-8″ 15′-8″ 19′-8″ 23′-8″ 27′-8″ 28″ 32″

36’

28′ 32″ 36’ 40′
Interior Lower Deck Length N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A 28′ 32′ 36′ 28′ 32′ 36′ 40′
Interior Upper Deck Length N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″
Interior Width 5′-8″ 5′-8″ 6′-8″ 6′-8″ 6′-8″ 6′-8″ 6′-8″ 6′-8″ 6′-8″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″
Width Between W/W N/A N/A N/A N/A N/A N/A N/A N/A N/A 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″
Interior Height 6′-1″ 6′-1″ 6′-1″ 6′-1″ 6′-1″ 6′-1″ 6′-1″ 6′-1″ 6′-1″ 6′-7″ 6′-7″ 6′-7″ 6′-7″ 6′-7″ 6′-7″ 6′-7″ 7′ 7′ 7′ 7′ 7′ 7′ 7′
Interior Riser Wall Height N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A 53″ N/A 53″ 53″ 53″ 53″ 53″
Interior Attic Height N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A 31″ N/A 31″ 31″ 31″ 31″ 31″
Platform Height 18″ 18″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 20″ 21″ 21″ 21″ 23″
Rear Doors Double Double Double Double Double Double Double Double Double Double Double Double Double Double Double Double Double Double Double Double Double Double Double
Rear Door Width 5′-3″ 5′-3″ 6′-3″ 6′-3″ 6′-3″ 6′-3″ 6′-3″ 6′-3″ 6′-3″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″
Rear Door Height 5′-6″ 5′-6″ 5′-6″ 5′-6″ 5′-6″ 5′-6″ 5′-6″ 5′-6″ 5′-6″ 6′ 6′ 6′ 6′ 6′ 6′ 6′ 6′-6″ 6′-8″ 6′-8″ 6′-8″ 6′-8″ 6′-8″ 6′-8″
Side Door Width 32″ 32″ 32″ 32″ 32″ 32″ 32″ 32″ 32″ 36″ 36″ 36″ 36″ 36″ 36″ 36″ 48″ 48″ 48″ 48″ 48″ 48″ 48″
Side Door Height 5′-2″ 5′-2″ 5′-2″ 5′-2″ 5′-2″ 5′-2″ 5′-2″ 5′-2″ 5′-2″ 5′-10″ 5′-10″ 5′-10″ 5′-10″ 5′-10″ 5′-10″ 5′-10″ 6′-6″ 78″ 78″ 78″ 78″ 78″ 78″
Cross Members O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C.
Wall Posts O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C.
Roof Members O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C.

Show Your Colors!

Split Colors with Swoosh
Midnight Colors
Add a MIDNIGHT blackout package!
See Dealer for Additional Colors*

*additional charge color

Split Colors with Swoosh
Midnight Colors
Add a MIDNIGHT blackout package!
See Dealer for Additional Colors*

*additional charge color

Workshop/Fiber Optic Trailers

You Deserve the Best!

Bravo is the perfect partner for your Mobile Workshop or Fiber Optic trailer project. Each use has different needs and the Bravo team will work with you to build the perfect trailer in either aluminum or steel frames.
With Bravo’s years of experience you can trust we’ll get it right. Pick from our 1000’s of options and we will create your dream trailer. Bravo commercial trailers work better, tow better, look better, and last longer. We make dreams come true!

Picking the Perfect

Workshop/Fiber Optic Trailer

Is Easy!

Contacting your authorized Bravo dealer is a great first step. Working together we will design the perfect custom trailer and make your project a success. Bravo has the resources to build it right and deliver it on time. You will not be disappointed. Our steadfast goal is to exceed your expectations!

Let Bravo Create the Perfect Trailer to Fit Your Needs
Our Options Work Better!
Star ALUMINUM Workshop Options

Tag Models Available:
6′ X 10’ to 12’ L
7′ X 12’ to 24’ L
8.5′ X 14’ to 34’ L

Awning
Axles, Running Gear & Wheels
  • Axles Dexter Torsion –
  • Aluminum Wheels –
  • Brakes – Electric Brakes for 6’W
Exterior Metal Options
  • Exterior Colors –
  • Split Color / Two Tone –
  • ATP Rear Crossmember –
Framework Options
  • Extra Height – 6” – 24” Available. Based on Model Width
  • Extended A-Frame –
  • ATP Covered A-Frame –
  • Heavy Duty Rear Bogey Wheels –
Front End Styles
  • Slant Wege –
  • V-Nose –
Jacks
  • Drop Down –
  • Jacks Nose Jacks –
12V Lighting & Options
  • Rear Loading Light –
  • Swing-out 12V Quartz Loading Light –
  • 12V Kill Switch –
110V Electrical Upgrades & Packages –
Doors
Concession Doors & Windows –
  • Exterior Removable Shelf –
Exterior Side Doors & Upgrades
  • 60” Double Side Door –
  • RV Side Door w/ Window & Screen –
  • Side Door Steps –
  • Bar Lock & Vise Lock –
  • 54” Over Wheel Well Door –
  • Swing Up Door w/ Removable Wheel Box Aluminum Models –
Ramp or Rear Door Options
  • Double Rear Door Cam Lock –
  • Rear Ramp Door (Light Duty, Medium Duty w/Flap, Heavy Duty w/Flap) –
  • ICON Rear Lights on Ramp Door –
  • Transition Flap for Ramp Door –
  • Turnkey 10’ Folding Ramps –
  • Cold Curtain –
  • Sliding Rear Glass Doors –
  • Rear Roll-up Style Door –
Ramp Over Wheel Wells & Ramp Ups –
Utility/Misc. Doors
  • Generator / Baggage Doors –
  • Cable Splicing Door –
  • Pocket Door in Partition Wall –
Finished Interior –
  • Flooring Options –
  • Insulation –
Cabinets –
  • Interior Shelving –
Generators –
  • Fuel Tank –
Roof Options
  • Roof Ladder Racks –
  • Roof Observation Deck w/ Ladder –
  • Roof Escape Hatch –
  • Roof Translucent –
Spare Tire Mounts –
  • Tire Racks –
Storage / Tool Box –
Tie Downs
  • D-Ring & E-Track Tie Downs –
  • Wheel Chocks –
Vents
  • Roof Vents –
  • Sidewall Vents Aluminum –
Winch Options –
Windows –
Wing – Star Rear –
Custom Options
  • Air Line with Drain –
  • LP Tanks –
  • Sinks, Plumbing & Bathrooms –
  • Outdoor Shower –
  • Display Cases with Slat Board Wall –
  • Rear Camera –
Star ALUMINUM Workshop Packages

Must Include V-Nose & Ramp Door

Black Out Thermocoat items to include:

  • Fenders Inside and Out
  • Top Rail & Bottom Trim
  • Side Door Trim & Stoneguard
  • Cast Aluminum Door Holdbacks
  • Rear Corners
  • Bezels on Fender & Tail Lights
  • Stainless Center Cap if Steel Wheel
  • Black Center Caps if Aluminum Wheel Optioned
  • Chrome Bezel for LED Tail Lights
  • Stainless Steel Center Caps

Not Available with V-Front

  • Aluminum Wheels
  • Polished Fenders
  • Stainless Steel Center caps
  • Stainless Steel Front Insert
  • Polished Front & Rear Corner Casting
  • Anodized Rear Corner Overlay
  • Chrome Bezels for LED Tail Lights

Available on 7′ x 12′ TA2 Models

  • Screwless Exterior 030 Metal
  • 12” Extra Height
  • 54” Triple Tube Tongue
  • Set Back Tongue Jack
  • 1000# Corner Post Rear Drop Down Jacks
  • 16” O.C. Roof Bows
  • Additional 32” Side Door w/Pro Latch
  • (2) 15”w x 30”h Windows w/Vertical Slider in Side Doors
  • Rear Bumper Step Covered with ATP
  • (1) 30”w x 15”h Window w/Horizontal Slider
  • (2) Cable Splicing Doors
  • Ceiling & Wall Insulation
  • White Vinyl Ceiling and Walls
  • Black Coin Floor
  • Exterior LED Beacon Light
  • (2) Exterior 11” LED Loading Lights
  • 110 Electrical
  • Air Conditioning & Heat
  • 4’ Overhead Cabinet
  • 24” Deep Countertop
  • Fire Extinguisher & Carbon Monoxide Detector
Hundreds more and a custom shop to install them!

Star ALUMINUM Trailer Specifications

Visit the Shopping Tools Tab for Printable Specs
Model code: AST8528TA4

AST = Star ALUMINUM Model, 85 = 8.5′ Width, 28 = 28′ Length, TA = Tandem Axles, 4 = Axle Rating

Specifications subject to change. Curb weights based on standard models with no options.

Details AST610SA AST612SA AST612TA2 AST614TA2 AST714TA2 AST716TA2 AST718TA2 AST720TA2 AST722TA2 AST724TA2 AST8516TA2 AST8520TA2 AST8524TA2 AST8526TA3 AST8528TA3 AST8526TA4 AST8528TA4
Floorplans Flat Flat Flat Flat Flat Flat Flat Flat Flat Flat Flat Flat Flat Flat Flat Flat Flat
Axles 2990# 2990# 3500# 3500# 3500# 3500# 3500# 3500# 3500# 3500# 3500# 3500# 3500# 5200# 5200# 6000# 6000#
Tires 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 16″ Radial 16″ Radial
Brakes Optional Optional Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric
Tube Frame 2″ x 3″ Tube 2″ x 3″ Tube 5″ Double Tube 5″ Double Tube 5″ Double Tube 5″ Double Tube 5″ Double Tube 5″ Double Tube 5″ Double Tube 5″ Double Tube 6″ Double Tube 6″ Double Tube 6″ Double Tube 6″ Double Tube 6″ Double Tube 6″ Double Tube 6″ Double Tube
Hitch Ball Size 2″ 2″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″
Curb Weight 1005# 1105# 1462# 1610# 1775# 1935# 2095# 2255# 2415# 2575# 2208# 2640# 3072# 3522# 3743# 3622# 3843#
Hitch Weight 100# 110# 146# 161# 240# 261# 283# 304# 326# 248# 298# 356# 415# 475# 505# 489# 519#
GVWR 2990# 2990# 7000# 7000# 7000# 7000# 7000# 7000# 7000# 7000# 7000# 7000# 7000# 9990# 9990# 12000# 12000#
Payload Capacity 1985# 1885# 5538# 5390# 5225# 5065# 4905# 4745# 4585# 4425# 4792# 4360# 3928# 6468# 6247# 8378# 8157#
Overall Length 14’-2” 16’-2” 16’-2” 18’-2” 18’-1” 20’-1” 22’-1” 24’-1” 26’-1” 28’-1” 20’-2” 24’-2” 28’-2” 30’-2” 32’-2” 30’-2” 32’-2”
Overall Width 7’-8” 7′-8″ 7’-8” 7’-8” 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″
Overall Height 7’-7” 7’-7” 7′-9″ 7′-9″ 7’-8” 7’-8” 7’-8” 7’-8” 7’-8” 7’-8” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-5” 8’-5”
Exterior Box Width 6′ 6′ 6′ 6′ 7′ 7′ 7′ 7′ 7′ 7″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″
Interior Length 10’-2” 12′-2″ 12′-2″ 14′-2″ 13’-8” 15’-8” 17’-8” 19’-8” 21’-8” 23’-8” 15’-8” 19’-8” 23’-8” 25’-8” 27’-8” 25’-8” 27’ 8”
Interior Width 5’-9” 5’-9” 5’-9” 5’-9” 6’-9” 6’-9” 6’-9” 6’-9” 6’-9” 6’-9” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1”
Interior Height 71-3/4” 71-3/4” 71-3/4” 71-3/4” 71-3/4” 71-3/4” 71-3/4” 71-3/4” 71-3/4” 71-3/4” 77-3/4″ 77-3/4″ 77-3/4″ 77-3/4″ 77-3/4″ 77-3/4″ 77-3/4″
Platform Height 18” 18” 20” 20” 19” 19” 19” 19” 19” 19” 20” 20” 20” 20” 20” 21” 21”
Rear Door Double Double Double Double Double Double Double Double Double Double Double Double Double Double Double Double Double
Rear Door Width 5’-4” 5’-4” 5’-4” 5’-4” 6’-4” 6’-4” 6’-4” 6’-4” 6’-4” 6’-4” 7′-8″ 7′-8″ 7′-8″ 7′-8″ 7′-8″ 7′-8″ 7′-8″
Rear Door Height 5’-7” 5’-7” 5’-7” 5’-7” 5’-8” 5’-8” 5’-8” 5’-8” 5’-8” 5’-8” 6′-1″ 6′-1″ 6′-1″ 6′-1″ 6′-1″ 6′-1″ 6′-1″
Side Door Width 32” 32” 32” 32” 32” 32” 32” 32” 32” 32” 36” 36” 36” 36” 36” 36” 36”
Side Door Height 5’-4” 5’-4” 5’-4” 5’-4” 5’-4” 5’-4” 5’-4” 5’-4” 5’-4” 5’-4” 6′ 6′ 6′ 6′ 6′ 6′ 6′
Cross Members O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C.
Wall Posts O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C. 16”O.C.
Roof Members O.C. 24”O.C. 24”O.C. 24”O.C. 24”O.C. 24”O.C. 24”O.C. 24”O.C. 24”O.C. 24”O.C. 24”O.C. 24”O.C. 24”O.C. 24”O.C. 24”O.C. 24”O.C. 24”O.C. 24”O.C.

Help Us Help You

Pick the Perfect Trailer!
Financing

Show Your Colors!

Split Colors with Swoosh
Midnight Colors
Add a MIDNIGHT blackout package!
See Dealer for Additional Colors*

*additional charge color

Split Colors with Swoosh
Midnight Colors
Add a MIDNIGHT blackout package!
See Dealer for Additional Colors*

*additional charge color

Workshop/Fiber Optic Trailers

You Deserve the Best!

Bravo is the perfect partner for your Mobile Workshop or Fiber Optic trailer project. Each use has different needs and the Bravo team will work with you to build the perfect trailer in either aluminum or steel frames.
With Bravo’s years of experience you can trust we’ll get it right. Pick from our 1000’s of options and we will create your dream trailer. Bravo commercial trailers work better, tow better, look better, and last longer. We make dreams come true!

Picking the Perfect

Workshop/Fiber Optic Trailer

Is Easy!

Contacting your authorized Bravo dealer is a great first step. Working together we will design the perfect custom trailer and make your project a success. Bravo has the resources to build it right and deliver it on time. You will not be disappointed. Our steadfast goal is to exceed your expectations!

Let Bravo Create the Perfect Trailer to Fit Your Needs
Our Options Work Better!
ICON Workshop Options

Tag Models Available:
8.5′ X 20’ to 34’ L

Gooseneck/Fifth Wheel Models Available:
8.5′ X 36’ to 48’L

Awning –
Axles, Running Gear & Wheels
  • Aluminum Wheels –
  • Axle Spread Configurations –
Exterior Metal Options
  • Exterior Colors –
  • .050 Exterior Metal – White or Black
  • Stainless Steel Sides –
  • ATP Finished Under Riser with LED Light –
  • Stainless Steel Gooseneck Front-End –
Framework Options
  • Extra Height – 6″ to 48″ Available
  • ATP Covered A-Frame –
  • Heavy Duty Rear Bogey Wheels –
  • Reverse Beavertail –
Jacks
  • 12V Nose Jack –
  • Hydraulic Nose Jack for Tag & Gooseneck –
  • Drop Down Jacks –
  • Set Back Tongue Jack –
12V Lighting & Options
  • LED Side Docking Light –
  • Triple Tail Light with Backup –
  • 12V Rear Loading Light –
  • 12V Kill Switch –
  • In-Floor 12V Battery –
110 Electrical, Upgrades & Packages –
  • Additional Lighting –
  • Swing-out Quartz Loading Light –
  • 500W Quartz Loading Lights –
Custom Cabinets, Closets & Tool Boxes –
Doors
Concession Doors & Windows  –
Exterior Side Doors & Upgrades
  • 60″ Double Side Door –
  • RV Side Door w/Window & Screen –
  • Side Door Steps –
  • Aluminum Step Well –
  • 54″ Over Wheel Well Door –
  • Swing Up Door w/Removable Wheel Box Aluminum Models –
Ramp Door Options
  • Aluminum Transition Flap –
  • Aluminum Ramp Door –
  • Cold Curtain –
  • Sliding Rear Glass Doors –
  • Stainless Ext. Rear Ramp Door –
  • Turnkey 10′ Folding Ramps –
  • Dragster Loading Package –
  • Extended Flap for Ramp Door
Ramp Over Wheel Wells & Ramp Ups –
Utility/Misc. Doors
  • Access Doors –
  • Pocket Door in Partition Wall –
Finished Interior Options
  • Insulation –
  • ATP or Carpeted Wheel Boxes –
  • Carpeted Walls & Aluminum Ceiling –
Flooring Options –
Generators –
  • Generator Prep –
  • Fuel Tank Under Floor –
HVAC
  • A/C –
  • Heat –
Roof Options
  • Roof Observation Deck & Ladder –
  • Roof Escape Hatch –
Spare Tire Mounts –
  • In-Floor Spare Tire Storage –
  • Tire Racks –
Storage / Tool Box –
Tie Downs
  • Airline Track –
  • D-Ring & E-Track Tie Downs –
Vents
  • Roof Vents –
  • Aluminum Sidewall Vents –
Winches –
Windows –
Wing ICON Rear –
Custom Options
  • Air Line with Drain –
  • Rear Camera –
  • Sinks, Plumbing & Bathroom –
  • Exterior Marine Speakers –
  • And Much More
Hundreds more and a custom shop to install them!

ICON Trailer Specifications

Visit the Shopping Tools Tab for Printable Specs
Model code:  IC8520TA3

IC = ICON Model, 85 = 8.5′ Width, 20 = 20′ Length, TA = Tandem Axles, 3 = Axle Rating

Specifications subject to change. Curb weights based on standard models with no options.

Details IC8520TA3 IC8524TA3 IC8528TA3 IC8524TA4 IC8528TA4 IC8532TA4 IC8530TA5 IC8532TA5 IC8530TTA4 IC8532TTA4 IC8532TTA5 IC8534TTA5 ICG/F8540TTA4 ICG/F8544TTA4 ICG/F8548TTA4 ICG/F8540TTA5 ICG/F8544TTA5 ICG/F8548TTA5 ICG/F8550TTA5 ICS8524TTA4 ICS8526TTA4 ICS8524TTA5 ICS8526TTA5 ICS8528TTA5 ICS8530TTA5 ICS8532TTA5 ICG/FS8536TTA6 ICG/FS8538TTA6 ICG/FS8540TTA6 ICG/FS8542TTA6 ICG/FS8544TTA6 ICG/FS8546TTA6 ICG/FS8548TTA6 AIC8520TA3 AIC8524TA3 AIC8528TA3 AIC8524TA4 AIC8528TA4 AIC8532TA4 AIC8530TA5 AIC8532TA5 AIC8530TTA4 AIC8532TTA4 AIC8532TTA5 AIC8534TTA5
Tire Size 15” Radial 15” Radial 15” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 17.5” Radial 17.5” Radial 17.5” Radial 17.5” Radial 17.5” Radial 17.5” Radial 17.5” Radial 15” Radial 15” Radial 15” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial 16” Radial
Brakes Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric
Tube Frame 6” Tube 6” Tube 6” Tube 6” Tube 6” Tube 6” Tube 6” Tube 6” Tube 6” Tube 6” Tube 8” Tube 8” Tube 6” Tube 6” Tube 8” Tube 8” Tube 8” Tube 8” Tube 8” Tube 8” Tube 8” Tube 8” Tube 8” Tube 8” Tube 8” Tube 8” Tube 8” Tube 8” Tube 8” Tube 8” Tube 8” Tube 8” Tube 8” Tube 6” Tube 6” Tube 6” Tube 6” Tube 6” Tube 6” Tube 6” Tube 6” Tube 8” Tube 8” Tube 8” Tube 8” Tube
Hitch Ball Size 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16” 2-5/16”
Curb Weight 4594# 5202# 5710# 5232# 5740# 6232# 6086# 6332# 6406# 6652# 6506# 6752# 8993# 9491# 10354# 9087# 9621# 10484# 10745# 9240# 10010# 9390# 10160# 10930# 11700# 12320# 12816# 13528# 14240# 14952# 15664# 16376# 17088# 3745# 4214# 4594# 4242# 4620# 4986# 4970# 5126# 5429# 5651# 5781# 5964#
Hitch Weight 621# 703# 771# 707# 775# 842# 822# 855# 865# 898# 878# 912# 2250# 2373# 2589# 2272# 2406# 2621# 2687# 1386# 1501# 1408# 1501# 1640# 1755# 1848# 2563# 2706# 2848# 2990# 3133# 3275# 3418# 487# 548# 597# 551# 600# 648# 646# 667# 706# 735# 752# 775#
GVWR 9990# 9990# 9990# 12000# 12000# 12000# 14000# 14000# 18000# 18000# 21000# 21000# 18000# 18000# 18000# 21000# 21000# 21000# 21000# 18000# 18000# 21000# 21000# 21000# 21000# 21000# 24000# 24000# 24000# 24000# 24000# 24000# 24000# 9990# 9990# 9990# 12000# 12000# 12000# 14000# 14000# 18000# 18000# 21000# 21000#
Payload Capacity 5396# 4788# 4280# 6768# 6260# 5768# 7914# 7668# 11594# 11348# 14494# 14248# 9007# 8509# 7046# 11913# 11379# 10516# 10255# 8760# 7990# 11610# 10840# 10070# 9300# 8680# 11184# 10472# 9760# 9048# 8336# 7624# 6912# 6245# 5776# 5396# 7758# 7380# 7014# 9030# 8874# 12571# 12349# 15219# 15036#
Overall Length 24’-2” 28’-2” 32’-2” 28’-2” 32’-2” 36’-2” 30’-2” 32’-2” 30’-2” 32’-2” 32’-2” 34’-2” 40’-6” 44’-6” 48’-6” 40’-6” 44’-6” 48’-6” 50’6” 28’-2” 30’-2” 28’-2” 30’-2” 32’-2” 34’-2” 36’-2” 36’-6” 38’-6” 40’-6” 42’-6” 44’-6” 46’-6” 48’6” 24’-8” 28’-8” 32’-8” 28’-8” 32’-8” 36’-8” 34’-8” 36’-8” 34’-8” 36’-8” 36’-8” 38′-8”
Overall Width 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6” 8’-6”
Overall Height 9’1” 9’1” 9’1” 9’1” 9’1” 9’1” 9’1” 9’1” 9’1” 9’1” 9’3” 9’3” 9’1” 9’1” 9’1” 9’3” 9’3” 9’3” 9’5” 13’4” 13’4” 13’4” 13’4” 13’4” 13’4” 13’4” 13’4” 13’4” 13’4” 13’4” 13’4” 13’4” 13’4” 9’1” 9’1” 9’1” 9’1” 9’1” 9’1” 9’1” 9’1” 9’1” 9’1” 9’1” 9’1”
Exterior Box Width 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4” 8’-4”
Interior Length 19’-7” 23’-7” 27’-7” 23’-7” 27’-7” 31’-7” 29’-7” 31’-7” 29’-7” 31’-7” 31’-7” 33’-7” 32’ 36’ 40’ 32’ 36’ 40’ 42’ 23’-7” 25’-7” 23’-7” 25’-7” 27’-7” 29’-7” 31’-7” 28’ 30’ 32’ 34’ 36’ 38’ 40’ 19’-7” 23’-7” 27’-7” 23’-7” 27’-7” 31’-7” 29’-7” 31’-7” 29’-7” 31’-7” 31’-7” 33’-7”
Interior Width 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1” 8’-1”
Width B/W Wheel Wells 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 80-1/2” 80-1/2” 80-1/2” 80-1/2” 80-1/2” 80-1/2” 80-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2” 81-1/2”
Interior Height 7’ 7’ 7’ 7’ 7’ 7’ 7’ 7’ 7’ 7’ 7’ 7’ 7’ 7’ 7’ 7’ 7’ 7’ 7’ 11’1″ 11’1″ 11’1″ 11’1″ 11’1″ 11’1″ 11’1″ 11’1″ 11’1″ 11’1″ 11’1″ 11’1″ 11’1″ 11’1″ 6’10” 6’10” 6’10” 6’10” 6’10” 6’10” 6’10” 6’10” 6’10” 6’10” 6’10” 6’10”
Platfrom Height/Loading 20″/17″ 20″/17″ 20″/17″ 21″/18″ 21″/18″ 21″/18″ 20″/17″ 20″/17″ 20″/17″ 20″/17″ 22″/18″ 22″/18″ 20″/18″ 20″/18″ 22″/18″ 22″/18″ 22″/18″ 22″/18″ 22″/18″ 22″/18″ 22″/18″ 22″/18″ 22″/18″ 22″/18″ 22″/18″ 22″/18″ 22″/18″ 22″/18″ 22″/18″ 22″/18″ 22″/18″ 22″/18″ 22″/18″ 20″/17″ 20″/17″ 20″/17″ 21″/18″ 21″/18″ 21″/18″ 21″/18″ 21″/18″ 23″/20″ 23″/20″ 23″/20″ 23″/20″
Rear Door RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP RAMP
Rear Door Width 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″ 92″
Rear Door Height 82″ 82″ 82″ 82″ 82″ 82″ 82″ 82″ 82″ 82″ 82″ 82″ 82″ 82″ 82″ 82″ 82″ 82″ 82″ 96″ 96″ 96″ 96″ 96″ 96″ 96″ 96″ 96″ 96″ 96″ 96″ 96″ 96″ 82″ 82″ 82″ 82″ 82″ 82″ 82″ 82″ 82″ 82″ 82″ 82″
Side Door Width 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″ 48″
Side Door Height 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″ 78″
Cross Members O.C. 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C
Wall Posts O.C. 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C
Roof Members O.C. 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C 16”O.C

Show Your Colors!

Split Colors with Swoosh
Midnight Colors
Add a MIDNIGHT blackout package!
See Dealer for Additional Colors*

*additional charge color

Split Colors with Swoosh
Midnight Colors
Add a MIDNIGHT blackout package!
See Dealer for Additional Colors*

*additional charge color

Find Your Local

Dealer

Find Now

Find Your Local

Dealer

Find Now
