Scout Features


All Scout Trailers come standard with a premium side door featuring a slam lock and concealed hinge vs. others bar lock and strap hinges.



GP DryMax 3/8” engineered wood interior side walls are standard vs. others thinner lauan.



Standard flow thru side wall vents keep air moving on the road or at rest.



One piece aluminum roofs are standard on all Bravo trailers. We leave the leaky roofs to others.



We only use commercial quality LED lighting inside and out. Brighter lights lead to safer towing!



Radial tires come standard on premium e-coated steel wheels. They tow better than the others cheaper bias ply tires.


The Scout trailer may be Bravo’s entry-level trailer model, but it’s no “throw away” trailer. All Scout trailers are work ready and feature the Bravo “BIG 10 plus 5” commercial construction features. Scout is a great value in enclosed cargo trailer with sizes ranging from 5×8 to 8.5x24TA3 with a long list of options. If you’re in the market for an economical cargo trailer, yet built to stand up to years of use, Scout is for you!

View Big 10 PDF

Scout Standards

  • Dexter Drop Spring Axle
  • 15” Radial Tires
  • Silver Mod Wheels
  • Aluminum Fenders
  • Z-Tech Undercoated Frame
  • Tube Main Frame
  • 16″ On Center Cross Members
  • 16″ On Center Tube Wall Posts
  • Painted Tongue Jack w/Sandfoot
  • .030 Bonded Aluminum Exterior
  • V-Nose Style Front End (18″V- 5 & 6’w, 30″V- 7 & 8.5’w)
  • 1 Pc Aluminum Flat Roof Design
  • 3/4” Engineered Flooring
  • 3/8” DryMax Walls
  • Side Door w/Flushlock Standard (6’w-32”, 7’w-32” & 8.5’w-36”)
  • 6’7″ Interior Height on 6, 7 & 8.5w
  • Ramp Door Std on All Scout Models- 5 & 6’w Light Duty Ramp (No Flap), 7’w Med Duty Ramp w/Flap, 8.5’w Heavy Duty Ramp w/Flap
  • Color Wrapped Rear Steel Header & Corner Posts
  • Clear Lens LED Exterior Lighting
  • Rear Header Loading Light
  • LED License Plate Light
  • LED Dome Light (1-5w & 6w, 2-7w & 8.5w)
  • 2- 12V Wall Switches (1 for loading light)
  • 24” ATP Stoneguard
  • 1 Pair ABS Flow Thru Sidewall Vents
  • Bravo “Big 10 Plus 5”

Scout Features


All Scout Trailers come standard with a premium side door featuring a slam lock and concealed hinge vs. others bar lock and strap hinges.



GP DryMax 3/8” engineered wood interior side walls are standard vs. others thinner lauan.



Standard flow thru side wall vents keep air moving on the road or at rest.



One piece aluminum roofs are standard on all Bravo trailers. We leave the leaky roofs to others.



We only use commercial quality LED lighting inside and out. Brighter lights lead to safer towing!



Radial tires come standard on premium e-coated steel wheels. They tow better than the others cheaper bias ply tires.


The Scout trailer may be Bravo’s entry-level trailer model, but it’s no “throw away” trailer. All Scout trailers are work ready and feature the Bravo “BIG 10 plus 5” commercial construction features. Scout is a great value in enclosed cargo trailer with sizes ranging from 5×8 to 8.5x24TA3 with a long list of options. If you’re in the market for an economical cargo trailer, yet built to stand up to years of use, Scout is for you!

View Big 10 PDF

Scout Standards

  • Dexter Drop Spring Axle
  • 15” Radial Tires
  • Silver Mod Wheels
  • Aluminum Fenders
  • Z-Tech Undercoated Frame
  • Tube Main Frame
  • 16″ On Center Crossmembers
  • 16″ On Center Tube Wall Posts
  • Painted Tongue Jack w/Sandfoot
  • .030 Bonded Aluminum Exterior
  • V-Nose Style Front End (18″V- 5&6’w, 30″V- 7&8.5’w)
  • 1 Pc Aluminum Flat Roof Design
  • 3/4” Engineered Flooring
  • 3/8” DryMax Walls
  • Side Door w/Flushlock Standard (6’w-32”, 7’w-32” & 8.5’w-36”)
  • 6’7″ Interior Height on 6, 7 & 8.5’w
  • Ramp Door Std on All Scout Models- 5 & 6’w Light Duty Ramp (No Flap), 7’w Med Duty Ramp w/Flap, 8.5’w Heavy Duty Ramp w/Flap
  • Color Wrapped Rear Steel Header & Corner Posts
  • Clear Lens LED Exterior Lighting
  • Rear Header Loading Light
  • LED License Plate Light
  • LED Dome Light (1-5w & 6w, 2-7w & 8.5w)
  • 2- 12V Wall Switches (1 for loading light)
  • 24” ATP Stoneguard
  • 1 Pair ABS Flow Thru Sidewall Vents
  • Bravo “Big 10 Plus 5”

Scout Trailers

You Deserve Something Better!

Whether it’s for work or play there is a Scout trailer for you. Bravo trailers are built by a team who actually uses trailers themselves. Racers, hobbyists and tradesman-we at Bravo know what our customers demand from a quality cargo trailer. Great looking trailers that exceed your expectations are our specialty. They look better, tow better, last longer and are worth more at trade in time.

Picking the Perfect

Scout Trailer

Is Easy!

Contacting your authorized Bravo dealer is a great first step. They are experts in trailering and will help you choose a trailer and package to get your job done. Many times they will have the right trailer for you in stock. If not they will work with you designing the perfect custom trailer and Bravo will build it right and deliver it on time. Our steadfast goal is to exceed your expectations!

Let Bravo Create the Perfect Trailer to Fit Your Needs
Our Options Work Better!
Scout Options

Tag Models Available:

  • 5′ X 8′ to 10’L
  • 6′ X 10′ to 12’L
  • 7′ X 12′ to 24’L
  • 8.5′ X 14′ to 24’L
Awning
Axles, Running Gear & Wheels
  • Axles Dexter Torsion –
  • Aluminum Wheels –
  • Electric Brake for 5 or 6’w Single Axle
Exterior Metal Options
  • Exterior Colors –
  • Split Color / Two Tone –
Framework Options
  • Extra Height – 6”
  • 54″ Triple Tube Tongue
  • Winch Plate
  • Rock Guard Paint on Tongue & Rear Member
Front End Styles
  • Slant Wedge ‘V’ Front
  • 60″ V-Nose –
Jacks
  • Fold Down Jacks –
12V Lighting & Options
  • 12V LED Dome Light –
  • 12V Wall Switches (2) 3-Way
Side & Rear Door Options
  • Bar Lock & Vise Lock –
  • Double Rear Doors In Lieu of Ramp Door –
  • Transition Flap – Steel or Aluminum –
Finished Interior –
  • Flooring Options –
Cabinets –
Roof Options

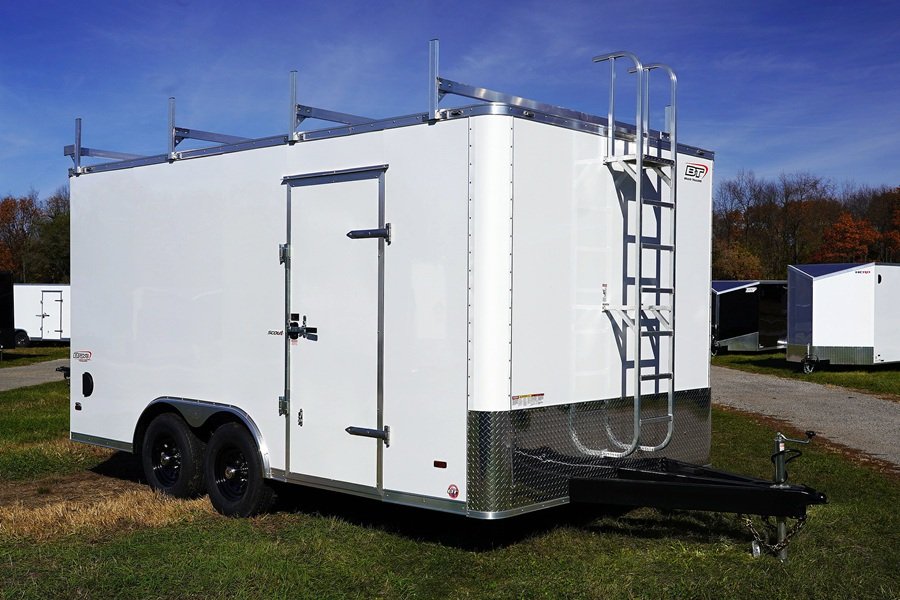

  • Ladder Racks –
  • Roof Translucent –
Spare Tire & Mounts –
Tie Downs
  • D-Ring & E-Track Tie Downs –
  • Wheel Chocks
Vents
  • Roof Vents –
  • Sidewall Vents Aluminum –
Winch System
Wing – Scout Rear –
Scout Packages
  • Chrome Bezel for LED Tail Lights
  • Stainless Steel Center Caps
  • Chrome Bezel for LED Tail Lights
  • Stainless Steel Center Caps
  • Anodized Strip on ‘V’ Nose
  • Stoneguard Top Trim
  • Aluminum Wheels
  • Anodized Angled Exterior Strip

Not Available w/Optional Double Rear Door

Black Out Thermocoat items to include:

  • Fenders Inside and Out
  • Top Rail & Bottom Trim
  • Side Door Trim & Stoneguard
  • Cast Aluminum Door Holdbacks
  • Rear Corners
  • Bezels on Fender & Tail Lights
  • Stainless Center Cap if Steel Wheel
  • Black Center Caps if Aluminum Wheel Optioned

Available on 6’ w Single Axle Models Only

  • Medium Duty Ramp Door w/Flap ilo Light Duty
  • 1000# Fold Down Jacks
  • 4- 5000# Recessed Floor D-Rings
  • Mounting Plate for Wheel Chock (Chock sold separately)

Available on 7’w Single Axle Models Only

  • 1000# Fold Down Jacks
  • 4- 5000# Recessed Floor D-Rings
  • Mounting Plate for Wheel Chock (Chock sold separately)

Available on 7’W Tandem Axle Models Only

  • 1000# Fold Down Jacks
  • 7- 5000# Recessed Floor D-Rings
  • 2- Mounting Plates for Wheel Chock (Chock sold separately)

Available on 7’W Tandem Axle Models Only

  • 60″ V-Nose
  • 6″ Tube Frame Upgrade
  • 64″ Medium Duty Ramp in ‘V’ w/Flap & Spring Assist
  • 6- 1000# Flushmount Floor Tie Downs
  • 3/4″ x 12″ Engineered Kickplate
  • Zinc Barlocks on  Front & Rear Ramp Doors
  • No-Show Flap Hinges
  • No Trim on Flaps, Threshold, Top or Bottom of Ramp
  • No Spring Assist Cover

All Packages include

  • White Vinyl Ceiling
  • .030 Aluminum Interior Walls

Choice of Flooring & Ramp Door Covering

  • Black & White Checker Flooring with ATP on Ramp & Flap
  • Hi-Gloss Black Marble Flooring with ATP on Ramp & Flap
  • ATP Flooring with ATP on Ramp & Flap
  • Black Coin Flooring with Black Coin On Ramp & Flap
Hundreds more and a custom shop to install them!

Scout Trailer Specifications

Visit the Shopping Tools Tab for Printable Specs
Model code: SC8524TA2

SC = Scout Model, 85 = 8.5′ Width, 24 = 24′ Length, TA = Tandem Axles, 2 = Axle Rating

Specifications subject to change. Curb weights based on standard models with no options.

Details SC58SA SC510SA SC610SA SC612SA SC712SA SC714TA2 SC716TA2 SC8516TA2 SC8520TA2 SC8524TA2
Download Floorplans Here V-Nose V-Nose V-Nose V-Nose V-Nose V-Nose V-Nose V-Nose V-Nose V-Nose
Axles 2990# 2990# 2990# 2990# 3500# 3500# 3500# 3500# 3500# 3500#
Tires 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial
Brakes Optional Optional Optional Optional Electric Electric Electric Electric Electric Electric
Tube Frame 3″ Tube 3″ Tube 3″ Tube 3″ Tube 4″ Tube 4″ Tube 4″ Tube 6″ Tube 6″ Tube 6″ Tube
Hitch Ball Size 2″ 2″ 2″ 2″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″
Curb Weight 993# 1158# 1234# 1413# 1817# 2306# 2542# 2737# 3245# 3753#
Hitch Weight 149# 174# 185# 212# 273# 346# 381# 411# 487# 563#
GVWR 2990# 2990# 2990# 2990# 3500# 7000# 7000# 7000# 7000# 7000#
Payload Capacity 1997# 1832# 1756# 1577# 1683# 4694# 4458# 4263# 3755# 3247#
Overall Length 12′-2″ 14′-2″ 14′-2″ 16′-2″ 16′-1″ 18′-1″ 20′-1″ 20′-2″ 24′-2″ 28′-2″
Overall Width 6′-6″ 6′-6″ 7′-6″ 7′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″
Overall Height 6′-8″ 6′-8″ 8′-2″ 8′-2″ 8′-2″ 8′-2″ 8′-2″ 8′-5″ 8′-5″ 8′-5″
Exterior Box Width 5′ 5′ 6′ 6′ 7′ 7′ 7′ 8′-4″ 8′-4″ 8′-4″
Interior Length w/ ‘V’ 9′-11″ 11′-11″ 11′-11″ 13′-11″ 15′ 17′ 19′ 19′ 23′ 27′
Interior Width 4′-8″ 4′-8″ 5′-8″ 5′-8″ 6′-9″ 6′-9″ 6′-9″ 8′ 8′ 8′
Width Between W/W N/A N/A N/A N/A N/A N/A N/A 81-3/4″ 81-3/4″ 81-3/4″
Interior Height 5′-1″ 5′-1″ 6′-6″ 6′-6″ 6′-6″ 6′-6″ 6′-6″ 6′-6″ 6′-6″ 6′-6″
Platform Height 18″ 18″ 18″ 18″ 18″ 18″ 18″ 20″ 20″ 20″
Ramp Rear Door Lt Duty Lt Duty Lt Duty Lt Duty Med Duty Med Duty Med Duty Hvy Duty Hvy Duty Hvy Duty
Rear Door Width 4′-2″ 4′-2″ 5′-2″ 5′-2″ 6′-3″ 6′-3″ 6′-3″ 7′-7″ 7′-7″ 7′-7″
Rear Door Height 4′-6″ 4′-6″ 6′ 6′ 6′ 6′ 6′ 6′-3″ 6′-3″ 6′-3″
Side Door Width N/A N/A 32″ 32″ 32″ 32″ 32″ 36″ 36″ 36″
Side Door Height N/A N/A 70″ 70″ 70″ 70″ 70″ 72″ 72″ 72″
Cross Members O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C.
Wall Posts O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C.
Roof Members O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C.
