BRUTE Features

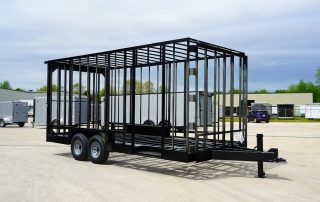

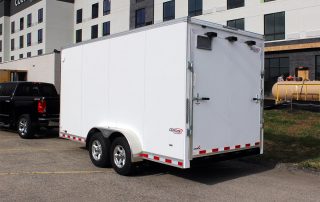

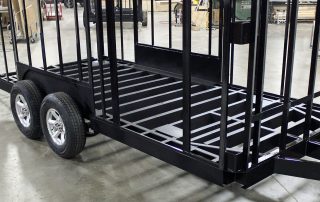

The combination of BRUTE’S beefy main tube frame, 12” o.c. floor, tube rear end  and Super Heavy Duty A-frame makes for a trailer that will last and exceed your expectations.

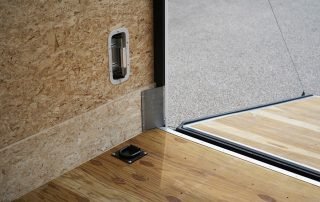

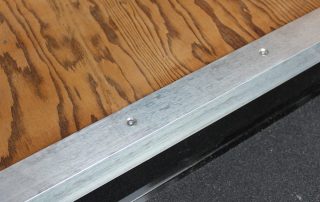

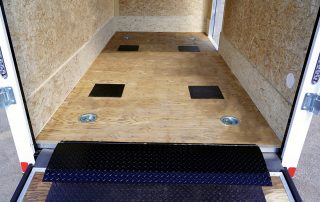

Double ¾” wolmanized plywood floor, 12” o.c. cross members and beefy trim can handle your heavy load.

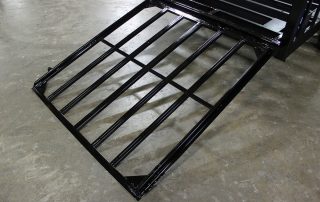

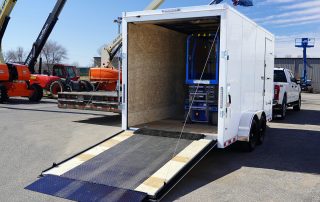

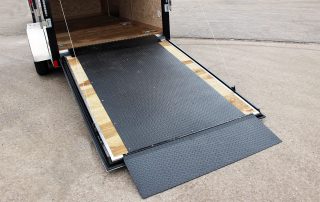

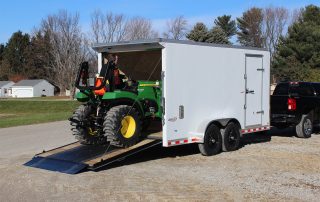

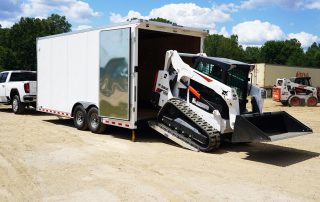

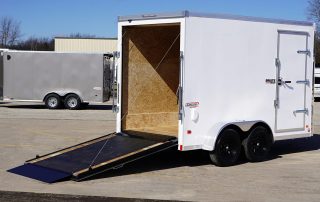

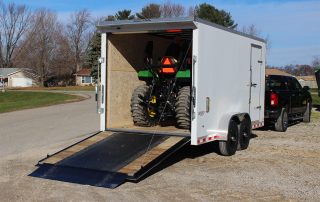

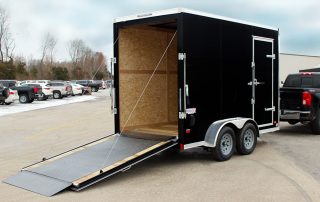

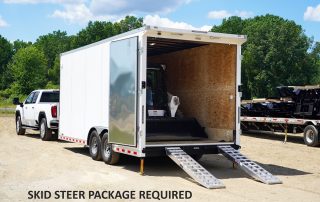

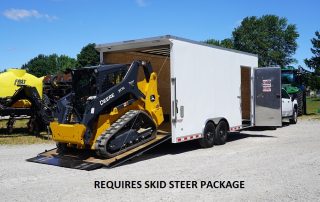

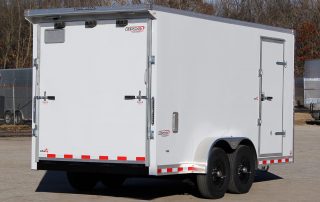

BRUTE Super Heavy Duty ramp doors have rockguard coated steel plates and reinforced steel flap for the unique stresses of heavy,  narrow and hard tired equipment.

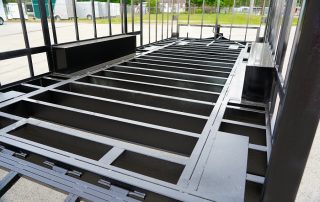

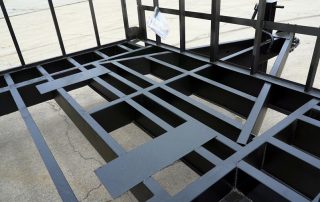

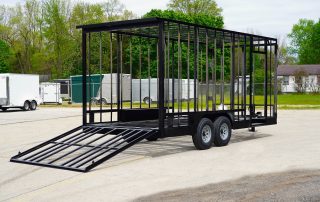

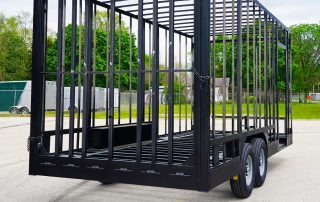

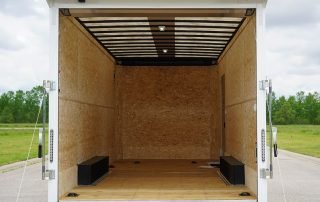

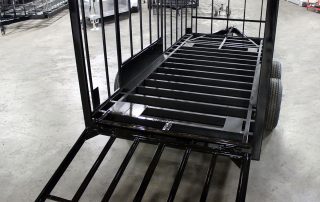

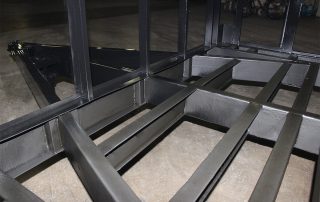

12″ O.C. cross members, tube rear cross member, corner post and header with a 7-gauge reinforced front cross member.

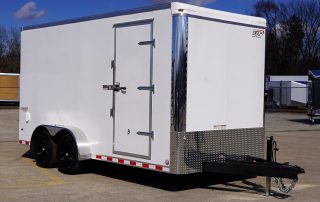

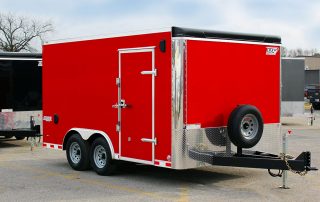

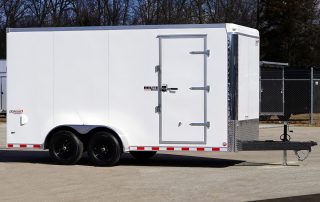

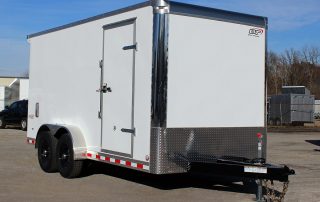

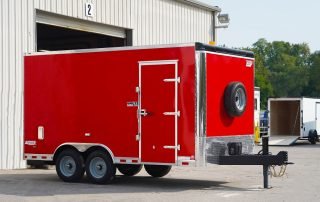

BRUTE’S standard 36″ HD aluminum framed side door with bar lock, slam lock, triple hinges and aluminum liner is built to last. Even the cast aluminum door hold backs are mounted to steel plates for years of service.



The combination of BRUTE’S beefy main tube frame, 12” o.c. floor, tube rear end  and Super Heavy Duty A-frame makes for a trailer that will last and exceed your expectations.

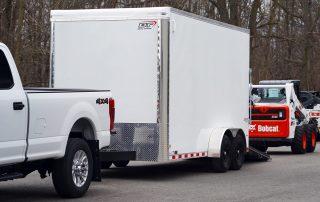

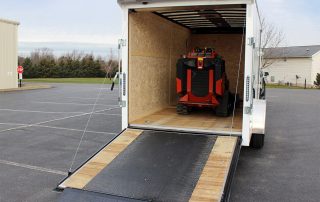

BRUTE Trailers by Bravo are not your typical “throw away” enclosed trailers. They have been engineered and tested for the rigors of construction equipment hauling. Stronger frames, ramp doors and the features you need to get the job done day in and day out. We will not disappoint you, Bravo Trailers look better and work Harder.

View Big 10 PDF

BRUTE Standards

Available Sizes
  • 6×12-14′ TA3
  • 7×12-16′ TA3, TA4
  • 8.5×12-20′ TA4, TA5
Standard Features
  • Dexter Drop Spring Axles (TA3, TA4)
  • Dexter Torsion Axles (TA5)
  • Radial Tires
  • SHD Spring Assisted Ramp Door w/Steel Treadplate Flap
  • 3/4″ Wolmanized Flooring on Ramp Door w/Steel Tread Plate Runner
  • 1 Pair ABS Flow Thru Sidewall Vents
  • 2-5/16″ Adjustable Ball Coupler
  • 5000# Drop Leg Tongue Jack – Set Back

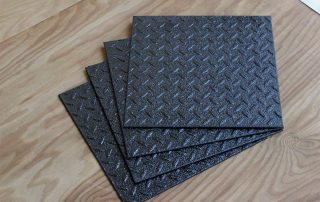

  • 4 – 12″ x 12″ Steel Floor Plates
  • 4 – 6000# Recessed Swivel D-Rings
  • Z-Tech Undercoated Frame
  • Rockguard on Tongue, Rear X-Member & Rear Header
  • 1 Pc Seamless Aluminum Roof
  • TPO Front Cap
  • .030 Aluminum Exterior
  • Anodized Front Corners
  • 36″ HD Aluminum Framed and Lined Side Door w/ 3 Strap Hinges, Barlock & Flushlock
  • 3/4″ x 12″ Interior Kickplate
  • 3/8″ Drymax Walls
  • Double 3/4″ Wolmanized Floor

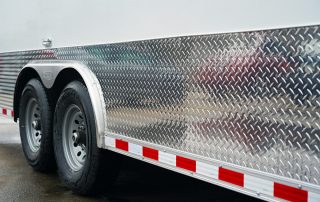

  • 24″ ATP Stoneguard Wrapped Around Front Corners
  • Clear Lens LED Exterior Lighting
  • Exterior LED Rear Header Loading Light w/Switch
  • LED Dome Light (1-6’w, 2-7’w & 8.5’w)
  • 2- 12V 3-Way Wall Switches
Frame Construction Features
  • 54″ Triple Tube A-Frame w/Reinforced 7 ga. Front Cross Member
  • 12″ O.C. Floor Cross Members and Outriggers

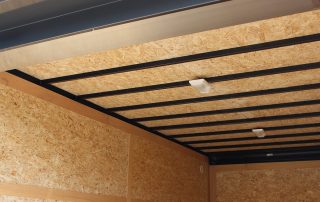

  • 16″ O.C. Tube Wall Posts and Roof Members

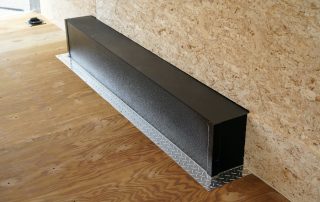

  • 1″x 3″ Tube Reinforced Wheel Boxes
  • Tube Side and Front Wall Posts
  • Tube Main Frame 6″ on TA3 & TA4, 8″ on TA5
  • Steel Backers for Hold Backs and Lighting
  • Bravo “BIG 10 Plus 5” Commercial Quality Features
**Trailer Not Intended for Forklifts**

BRUTE Features

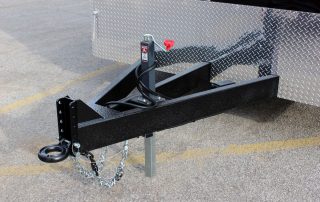

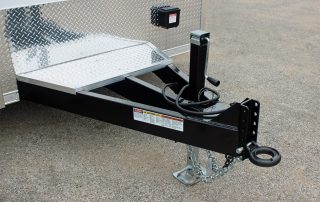

Reinforced 54” A-frame with  7 gauge front cross member and set back 5000# nose jack won’t leave you stranded.

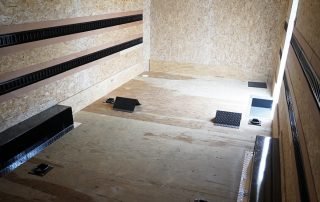

Double ¾” wolmanized plywood floor, 12” o.c. cross members and beefy trim can handle your heavy load.



BRUTE Super Heavy Duty ramp doors have rockguard coated steel plates and reinforced steel flap for the unique stresses of heavy,  narrow and hard tired equipment.

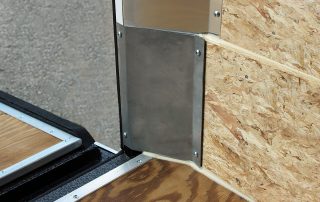

12″ O.C. cross members, tube rear cross member, corner post and header with a 7-gauge reinforced front cross member.



BRUTE’S standard 36″ HD aluminum framed side door with bar lock, slam lock, triple hinges and aluminum liner is built to last. Even the cast aluminum door hold backs are mounted to steel plates for years of service.



The combination of BRUTE’S beefy main tube frame, 12” o.c. floor, tube rear end  and Super Heavy Duty A-frame makes for a trailer that will last and exceed your expectations.


BRUTE Trailers by Bravo are not your typical “throw away” enclosed trailers. They have been engineered and tested for the rigors of construction equipment hauling. Stronger frames, ramp doors and the features you need to get the job done day in and day out. We will not disappoint you, Bravo Trailers look better and work Harder.

View Big 10 PDF

BRUTE Standards

Available Sizes
  • 6×12-14′ TA3
  • 7×12-16′ TA3, TA4
  • 8.5×12-20′ TA4, TA5
Standard Features
  • Dexter Drop Spring Axles (TA3, TA4)
  • Dexter Torsion Axles (TA5)
  • Radial Tires
  • SHD Spring Assisted Ramp Door w/Steel Treadplate Flap
  • 3/4″ Wolmanized Flooring on Ramp Door w/Steel Tread Plate Runner
  • 1 Pair ABS Flow Thru Sidewall Vents
  • 2-5/16″ Adjustable Ball Coupler
  • 5000# Drop Leg Tongue Jack – Set Back
  • 4 – 12″ x 12″ Steel Floor Plates
  • 4 – 6000# Recessed Swivel D-Rings
  • Z-Tech Undercoated Frame
  • Rockguard on Tongue, Rear X-Member & Rear Header
  • 1 Pc Seamless Aluminum Roof
  • TPO Front Cap
  • .030 Aluminum Exterior
  • Anodized Front Corners
  • 36″ HD Aluminum Framed and Lined Side Door w/ 3 Strap Hinges, Barlock & Flushlock
  • 3/4″ x 12″ Interior Kickplate
  • 3/8″ Drymax Walls
  • Double 3/4″ Wolmanized Floor
  • 24″ ATP Stoneguard Wrapped Around Front Corners
  • Clear Lens LED Exterior Lighting
  • Exterior LED Rear Header Loading Light w/Switch
  • LED Dome Light (1-6’w, 2-7’w & 8.5’w)
  • 2- 12V 3-Way Wall Switches
Frame Construction Features
  • 54″ Triple Tube A-Frame w/Reinforced 7 ga. Front Cross Member
  • 12″ O.C. Floor Cross Members and Outriggers
  • 16″ O.C. Tube Wall Posts and Roof Members
  • 1″x 3″ Tube Reinforced Wheel Boxes
  • Tube Side and Front Wall Posts
  • Tube Main Frame 6″ on TA3 & TA4, 8″ on TA5
  • Steel Backers for Hold Backs and Lighting
  • Bravo “BIG 10 Plus 5” Commercial Quality Features
**Trailer Not Intended for Forklifts**

Light Equipment Trailers

Transport • Secure • Store

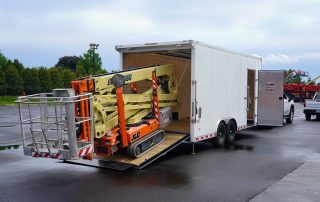

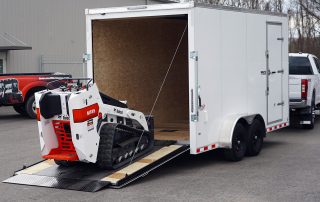

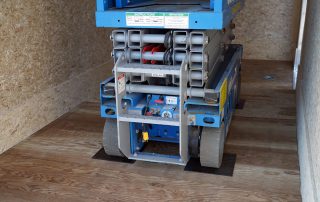

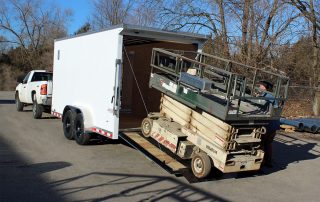

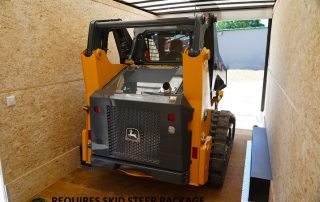

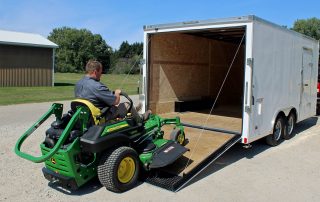

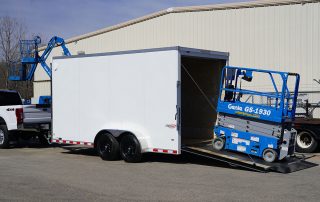

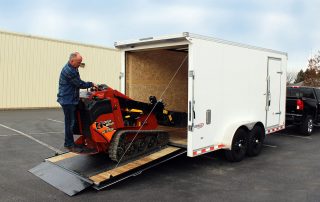

BRUTE light equipment trailers work harder and last longer. Our trailers are specifically built and tested for the rigors of towing compact construction equipment and scissor lifts. Do not confuse these with other brands light duty “throw away” enclosed trailers. Only Bravo gives you the durability and features you need for years of trouble free service.

Why is an

Enclosed Trailer

A Smart Upgrade?

  • Protects expensive equipment from theft, weather, and vandalism
  • Store your equipment securely, both at the shop and the job site
  • Store all accessories and related tools inside for faster rollouts

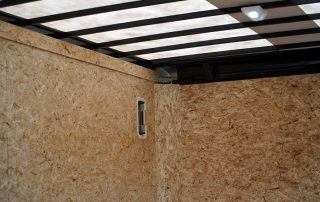

  • The translucent roof gives lots of natural light to find those tools
  • Maintains equipment resale value with less rust, fading, and weather abuse
  • Versatile. Unload the equipment and move job site materials next
  • Your logo makes it a full-time billboard, both on the road and at the job site
  • All this equals an exceptional ROI on BRUTE Trailers!

Picking the Perfect

Light Equipment Trailer

is Easy!

Contacting your authorized Bravo dealer is a great first step. They are experts in trailers and will help you choose the best trailer to fit your needs. Many times they will have the right trailer for you in stock. If not they will work with you designing the perfect custom trailer and Bravo will build it right and deliver it on time. Our steadfast goal is to exceed your expectations!

Picking the Perfect Light Equipment Trailer is Easy
Our Options Work Better!
BRUTE Options
Axles Running Gear & Wheels
  • Axles Dexter Torsion –

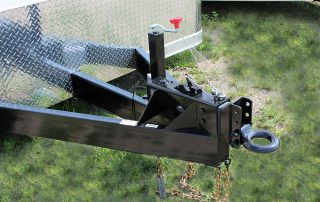

  • Surge Brakes –
  • Aluminum wheels –

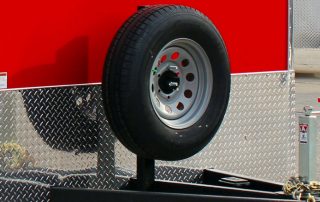

  • Spare Tire and Mounts –
Exterior Metal Options
  • Exterior Colors –
  • Screwless Exterior Metal –  VHB
  • Exterior Metal Upgrades – .040, .050,  limited colors
  • Split Color / Two Tone –
  • 24″ ATP Exterior Sides –
Framework Options
  • Extra Height – 6″ – 18″ Available
  • Beavertail (6′ & 7’W Models) –
Jacks & Couplers
  • Stabilizer Scissor Jacks
  • 12K Nose Jack –
  • Pintle Eye Coupler –
12V Lighting & Options
  • Exterior Lighting –
  • Interior 12v Lighting
  • 12V Battery and Box
110V Electrical
Exterior Side Door Accessories
  • Barlock Puck Lock
  • Aluminum Door Caddy
  • Aluminum Grab Handle
Ramp Door Options
  • BRUTE STP Hinge Cover w/Rockguard –
Utility Doors
  •  24×24 Access Door w/Slam Lock
Interior Options
  • Insulation –
  • Bedliner Floor, Walls and Combo

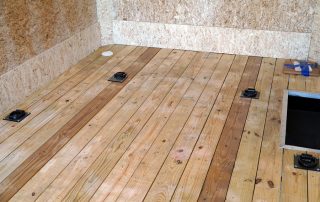

  • 2 x 6 Pine Flooring w/Darco Underbelly

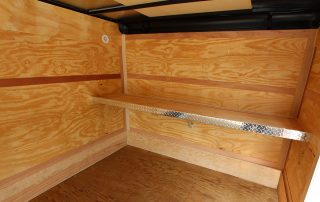

Shelving –
Fuel Systems
  • Fuel Door with Slam Lock
  • Fueling Station, 30 Gal w/ Dispenser & Battery –
Roof Options
  • Ladder Racks & Ladders –

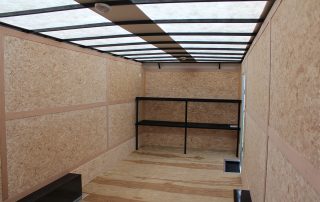

  • Translucent Roof –
Solar Charger Roof –
Tie Downs

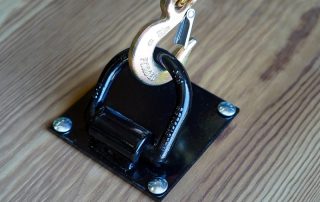

  • 6K Lash Ring –
  • 6K Swivel D-Ring –
  • Wall E-Track –
Vents
  • Aluminum Side Wall Vents –
Wing – Rear
  • Rear Wing w/ Loading Lights –
BRUTE Packages
  • Ball Burnished Front & Rear Corner Castings
  • Mill Finish Front Insert
  • Superstar Top Trim
  • Aluminum 5 ½” Super Duty Bottom Trim
  • Chrome Bezels for LED Tail Lights
  • Stainless Steel Center Caps

Available on 6′ & 7’W Brute Models

  • Dexter Upstart Torsion Axles
  • Lower Platform Height for Easier Loading
  • Brute Beavertail – Between Main Rails –
  • Brute Steel Tread Plate Hinge Cover w/Rockguard
Hundreds more and a custom shop to install them!

BRUTE Trailer Specifications

Visit the Shopping Tools Tab for Complete and Printable Specs
Model code: BRT612TA3

BRT = BRUTE Model, 6 = 6′ Width, 12 = 12′ Length, TA = Tandem Axles, 3 = Axle Rating

Specifications subject to change. Curb weights based on standard models with no options.

Details BRT612TA3 BRT614TA3 BRT712TA3 BRT714TA3 BRT8514TA4 BRT8516TA4 BRT8520TA4
Axles 5200# SPRING 5200# SPRING 5200# SPRING 5200# SPRING 6000# SPRING 6000# SPRING 6000# SPRING
6″ Tube Frame 12″ O.C. 12″ O.C. 12″ O.C. 12″ O.C. 12″ O.C. 12″ O.C. 12″ O.C.
Hitch Ball Size 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″
Curb Weight 2998# 3384# 3070# 3475# 3540# 3940# 4740#
Hitch Weight 240# 271# 246# 278# 284# 315# 390#
GVWR 9990# 9990# 9990# 9990# 12000# 12000# 12000#
Payload Capacity 6992# 6606# 6920# 6515# 8460# 8060# 7260#
Overall Length 16′-8″ 18′-8″ 16′-8″ 18′-8″ 18′-8″ 20′-8″ 24′-8″
Overall Width 7′-8″ 7′-8″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″
Overall Height 7′-10″ 7′-10″ 7′-10″ 7′-10″ 8′-6″ 8′-6″ 8′-6″
Exterior Box Width 6′ 6′ 7′ 7′ 8′-4″ 8′-4″ 8′-4″
Interior Length 12′-1″ 14′-1″ 11′-8″ 13′-8″ 13′-8″ 15′-8″ 19′-8″
Interior Width 5′-8″ 5′-8″ 6′-8″ 6′-8″ 8′-1″ 8′-1″ 8′-1″
Interior Height 6′ 6′ 6′ 6′ 6′-6″ 6′-6″ 6′-6″
Platform Height 20″ 20″ 20″ 20″ 21″ 21″ 21″
Rear Door RAMP RAMP RAMP RAMP RAMP RAMP RAMP
Side Door Width 36″ 36″ 36″ 36″ 36″ 36″ 36″
